Thickness 3mm High Temperature Drying Tower Support Grid Packed Tower Internals

​Packed Tower Internals Introduction

Packed Tower Internals must have support packing assemblies so that nothing falls off, while allowing enough gas and liquid to flow through them. When using a support grid with bulk packing, the grid needs to have rods on it to attach to the support ring.

Precautions For Installation Of Tower Internals

1. The number of people carrying the tray shall not exceed the carrying capacity;
2. The surface of the inner parts of the tower and the construction personnel must be kept clean;
3. Protective measures should be taken for the sealing surface of the manhole and the manhole cover and the nozzle at the bottom of the tower;
4. After the work is completed, the construction personnel need to take away all the tools, etc.

​Packed Tower Internals Support feature

High strength and stiffness. Packing pallets bear both the weight of the tower packing and liquid, as well as additional pressures during operation, such as pressure fluctuations, mechanical vibrations, and temperature fluctuations.

Adequate open area rate. The open porosity of the packing tray should be greater than the porosity of the tower packing. This can not only ensure the passage of gas, but also prevent liquid flooding.

Large release cross-sectional area. The free cross-sectional area of the liquid passage should be 1.5 times the surface area of the tower packing and larger than the opening area of the tower packing. If the free cross-sectional area is too small, it may cause fluid plugging, increased pressure drop, reduced efficiency, or even flooding.

Simple structure. Simple structure, convenient installation and maintenance.suitable structure. The structure should be conducive to the uniform distribution of liquid and gas and keep the resistance small (not more than 20 Pa).

Corrosion resistance. It must be stable in chemical and other corrosive environments.

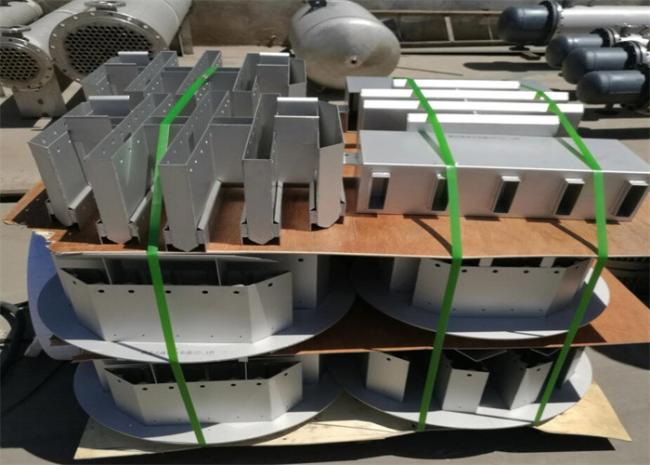

Column Internals Gas-liquid Distributor Shape

Packed Tower Internals Application

Sulfuric acid absorption tower.
Cooling Tower.
drying tower.
distillation column.
scrubber

About Us

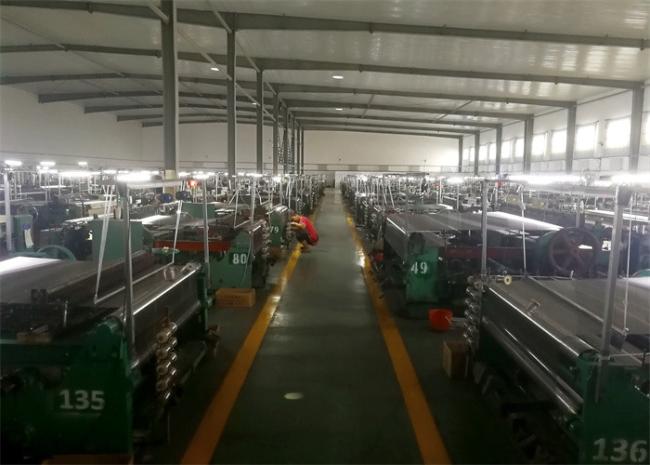

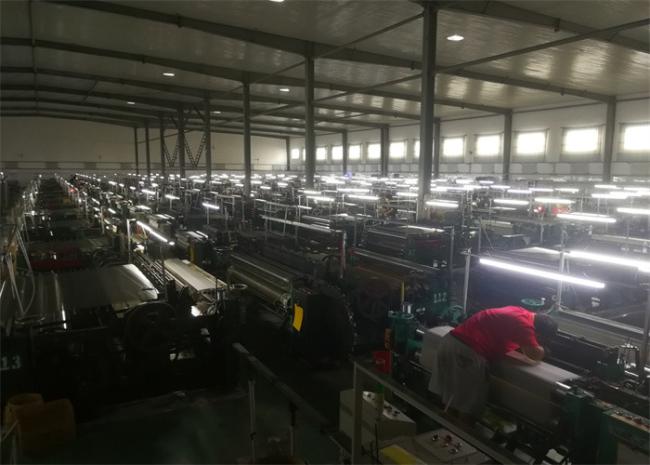

Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
