12v 5ah CUB Motorcycle Automatic Clutch 110cc Pit Dirt Bike Honda 125cc motorcycle
Factory product display
Smash 110CC CUB Motorcycle Spoke Wheel Disc Brake Liyang Battery Automatic Clutch
Details:
| MAIN FUNCTIONS | |
| Size (LXWXH) :1900×680×1100mm | Displacement:106.7 |
| Wheelbase 1190mm | Compression Ratio:9:1 |
| Engine model: YX110/Z110/C110/YB110 | Carburetor: Equal vacuum type |
| Ground Clearance: 130mm | Max power:5.1kw/8000r/min |
| Engine type: Single-cylinder Air-cooled, 4-stroke | Max. torque:7.2N•m(5000 r/min) |
| Fuel Capacity (l): 4.3L | Ignition: CDI |
| Wheels Front/rear: Spoke/Aluminum rim | Starter: Electric/kick |
| Types Front: 2.50-17L/175Kpa | Shift type: 1-N-2-3-4 |
| Types Rear: 2.75-17P/225Kpa | Drive Train: Chain |
| Suspensions Front/Rear:Telescopic, coil spring, oil damped / Swing arm type, coil spring, oil damped | Spark plug:A6RTC/CR6HSA |
| Brakes Front:Drum/Disk | Bore×Stroke: 52.4×49.5mm |
| Brakes Rear: Drum Brake | |
| Dry Weight: 95kg | |
| Max. loading: 150kg | |
| climbing ability: ≥16° | |
| Min fuel: 1.4L/100km | |
Product description:
1. Cub motorcycle manufacturing is our advantage compared with other factory, Technology R & D team with more than 10 years of experience for CUB motorcycle.
2. This Cub motorcycle is that we pay tribute to the classic. It is economical and welcomed by the Southeast Asian market
3. New designed high quality halogen headlight and turn light make the CUB motorcycle have more sport style. Provide continuous safety lighting.
4. 2 year or 30000 Km quality guarantee demonstrates our confidence in our products and our commitment to our customers.
5. 96 units SKD packing and 170 sets CKD packing help customers save transportation costs and avoid damage during the transportation.
Options:
MP3, USB, Remote Controller, Alarm
Customed Color And Sticker Design Is Accepted
Engine: YB110/Z110/C110/YB115
Lagguge: Rear rack/ Small rear carrier / Tail box
Wheel: Alloy wheel/Spoke wheel
Brake: Front disc brake/drum brake

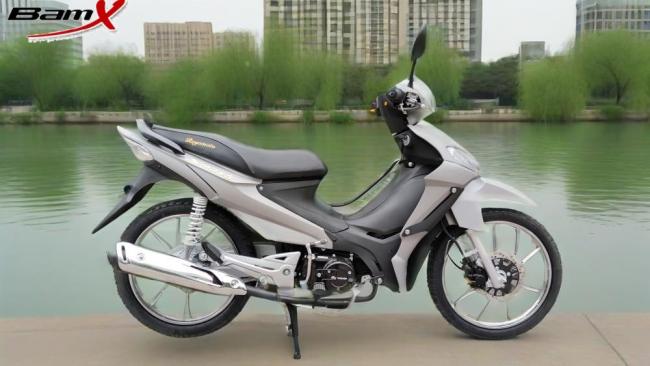

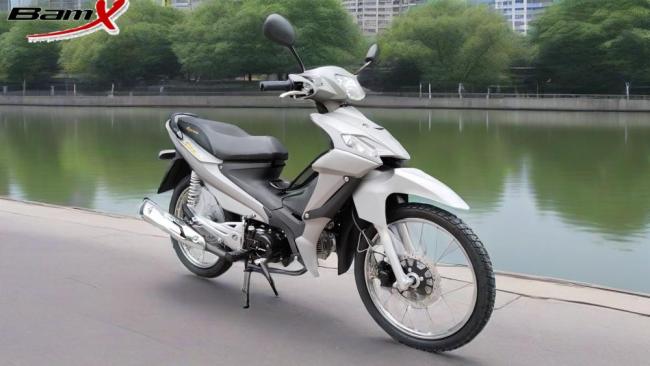

Product shows:
