ZLJ5322JQZ25V Zoomlion Used Truck Cranes 25ton Second Hand Crane Trucks
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 Days
Brand:
Zoomlion
Product Description
Used Zoomlion Truck Crane Zoomlion ZLJ5322JQZ25V Second Hand Truck Mobile Crane
Production Details:
|
Model NO.
|
ZLJ5322JQZ25V | Boom Type | Telescopic |
|
Max. Rated Lifting Capacity
|
25000 kg | Max. Lifting Height of Jib | 39m |
|
Max Gradeability
|
37% | Working Diameter | 23m |
|
Transport Package
|
Complies with Min. export packaging requirements | Specification | 12700×2500×3450mm |
|
Driving mileage
|
20000km | Working hours | 7000h |
|
Trademark
|
Zoomlion | Place of Origin | China |
|
HS Code
|
Supply Capacity | 10 Units Per Month |
- This machine is a full-slewing, telescopic boom type, hydraulic proportional control 5-section boom truck crane. The chassis adopts Zoomlion's own full drive 3-axle special chassis, discharged from Guochuan, has a wide field of vision.
- Uses the newest hydraulic proportional reversing valve with load feedback and quadruple gear pump system. Assembled with balance valve, relief valve, brake valve, hydraulic lock and other safety devices.
- To prevent the overload of the oil circuit and avoid accidents caused by the rupture of the oil pipe, ensure that the working ability of each actuator can be fully utilized.
- Equipped with a variety of safety devices, like torque limiters and a complete lighting system, which can ensure the safety and reliability of the work and facilitate night work.
- The vehicle's exhaust emissions comply with Euro III, and its safety devices meet the requirements of 3C certification.

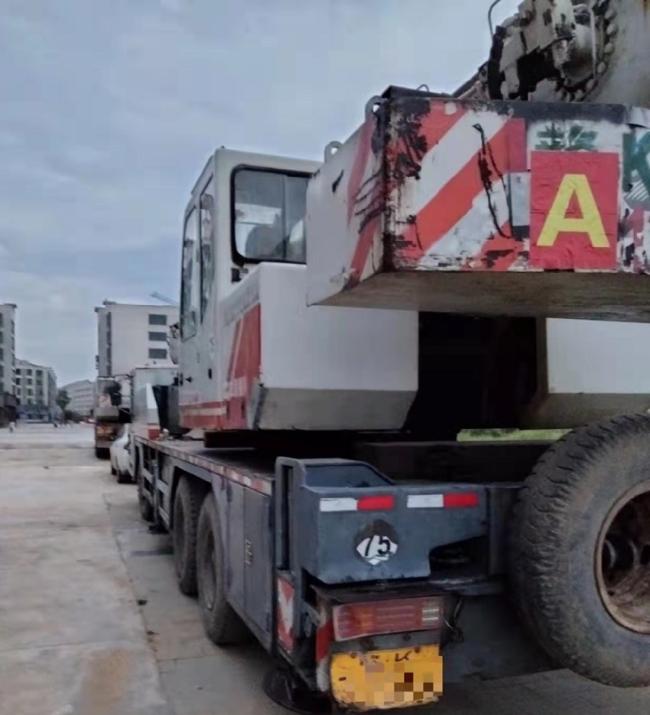

This Crane Truck was manufactured in June 2016, with 5-section boom, jib, two hooks, excellent performance, is a very widely used model.
Product Parameters:
|
Item
|
Value | Remarks | ||
| Working performance parameters | Max. rated lifting capacity (kg) | 25000 | ||
| Max. load moment of basic boom (kN.m) | 980 | |||
| Max. load moment of Max. length boom (kN.m) | 494 | |||
| Max. lifting height of the basic boom (m) | 11.0 | |||
| Max. lifting height of main boom (m) | 39 |
Boom deformation is not considered |
||
| Max. lifting height of jib (m) | 47.0 | |||
| Working Speed | Max. hoist rope speed (main winch) (m/min) | 120 | reel fourth layer | |
| Max. hoist rope speed (auxiliary winch) (m/min) | 170 | reel second layer | ||
| Boom derricking up time (s) | 40 | |||
| Boom telescoping out time (s) | 80 | |||
| Max. slewing speed (r/min) | 0～2.2 | |||
| Driving parameters | Max. traveling speed (km/h) | 78 | ||
| Max. gradeability (%) | 37 | |||
| Min. turning diameter (m) | 22 | |||
| Min. ground clearance (mm) | 220 | |||
| Limits for exhaust pollutants and smoke | Conform to related standards |
GB3847-2005 GB17691-2005 Phase III | ||
| Oil consumptionper 100 km (L) | 45 | |||
| Weight parameters | Deadweight in traveling condition (kg) | 31700 | ||
| Complete vehicle kerb mass (kg) | 31570 | |||
| Front axle load (kg) | 6900 | |||
| Rear axle axle load (kg) | 24800 | |||
| Size parameters | Dimensions (L×W×H) (mm) | 12700x2500x3450 | ||
| Longitudinal distance between outriggers (m) | 5.36 | |||
| Transversal distance between outriggers (m) | 6.1 | |||
| Main boom length (m) | 10.4~39.2 | |||
| Main boom elevation angle (°) | -2～80 | |||
| Jib length (m) | 8 | |||
| Offset (°) | 0 , 30 | |||
| Chassis | Model | zlj5325 | ||
| Type | Class II | |||
| Engine | Model | WP10.375N | ||
| Rated power (kW/r/min) | 199/2200 | |||
| Maximum output torque (N.m/r/min) | 1100/1300~1600 | |||
