Used Zoomlion Used Truck Cranes QY150V633 Second Hand Truck Mobile Crane
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 Days
Brand:
Zoomlion
Product Description

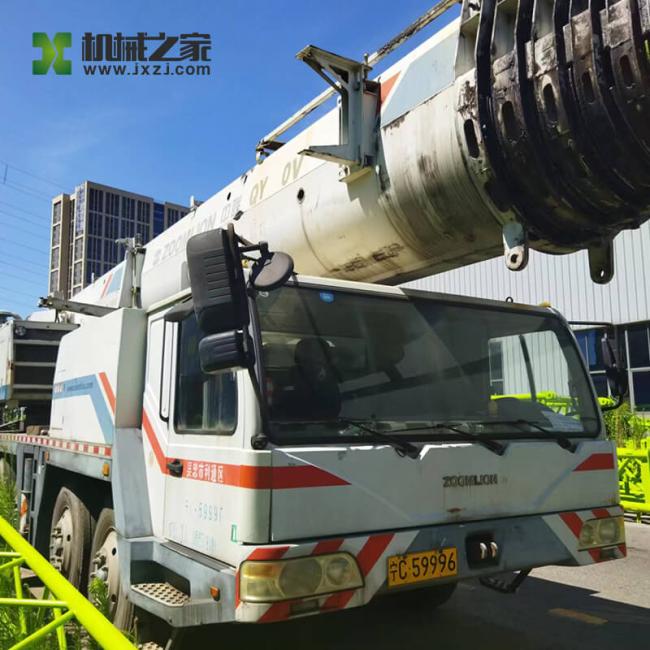

Used Zoomlion Truck Crane Zoomlion QY150V633 Second Hand Truck Mobile Crane
Production Details:
|
|
QY150V633 |
Boom Type | Telescopic |
|
|
150000 kg | Max. Lifting Height of Jib | 60m |
|
|
40% | Working Diameter | 24m |
|
|
Complies with Min. export packaging requirements | Specification |
14990×3000×3950MM |
|
|
11000KM | Working hours | 5000h |
|
|
Zoomlion | Place of Origin | China |
|
|
Supply Capacity |
10 Units/ Month |
- Zoomlion QY150V633 truck crane is a high-performance and high-reliability crane designed and developed by our company in order to meet the market demand, using the technology of designing and manufacturing mobile cranes for many years and combining with international advanced technology.
- This product is a high-tech product with a high concentration of electromechanical hydraulic systems. It will be active in various fields of my country's economic construction with its excellent handling performance, excellent fretting performance, huge lifting capacity and extraordinary lifting height.
- This product is suitable for lifting operations and installation projects in chemical, mining, oil fields, ports, construction sites and other places. This product is not suitable for areas with strong electromagnetic waves.
- This product is a full-slewing, telescopic boom type, electro-hydraulic proportional control truck crane. It adopts the company's self-made full-drive six-axle special chassis, with wide field of vision, luxurious and comfortable decoration, three-axle drive and four-axle steering.
Product Parameters:
| Item | Value | Remarks | |
| Working performance | Max. rated total lifting weight (kg) | 150000 | |
| Max. load moment of the basic boom (kN.m) | 5292 | 6m range | |
| Max. load moment of the longest main boom (kN.m) | 2264 | 22m range | |
| Max. lifting height of the basic boom (m) | 13.5 | ||
| Max. lifting height of main boom (m) | 60 |
The deformation of the boom is not considered, and the value in brackets is the value of the extension arm |
|
| Max. lifting height of jib (m) | 78.4 / (86) | ||
| Working speeds | Max. speed of single rope (main winch) (m/min) | 110 | At fifth layer |
| Max. speed of single rope (auxiliary winch) (m/min) | 75 | At third layer | |
| Boom derricking up time (s) | 78 | ||
| Boom telescoping out time (min) | 12 | ||
| Max. rotation speed (r/min) | 1.5 | ||
| Driving parameters | Max. driving speed (km/h) | 72 | |
| Max. gradeability (%) | 40 | ||
| Min. turning diameter (m) | ≤24 | ||
| Min. ground clearance (mm) | 280 | ||
| Exhaust Pollutant Emission Value and Smoke Level Limit | Comply with the standard |
GB3847-2005 GB17691-2005(Euro Ⅲ) |
|
| Fuel consumption per 100 kilometers (L) | 85 | ||
| Weight parameters | Deadweight in traveling condition(kg) | 54900 | |
| Complete vehicle kerb mass (kg) | 54705 | ||
| Ⅰ, Ⅱ, Ⅲ axle load (kg) | 8700/8700/8700/ | ||
| Ⅳ, Ⅴ, Ⅵ axle load (kg) | 20800(Dual axis)/8000 | ||
| Dimensions | Dimensions (L×W×H) (mm) | 14990×3000×3950 | |
| Longitudinal distance of outriggers (m) | 7.04 | ||
| Outrigger lateral distance (m) |
8.5(Full extension), 6.5(Half extension) |
||
| Main arm length (m) | 13~59 | ||
| Main boom elevation angle (°) | -1.5～82 | ||
| Jib length (m) | 11 ,18.6 | ||
| Jib + extension arm (m) | 26.6 | ||
| Offset (°) | 0 ,15, 30 | ||
