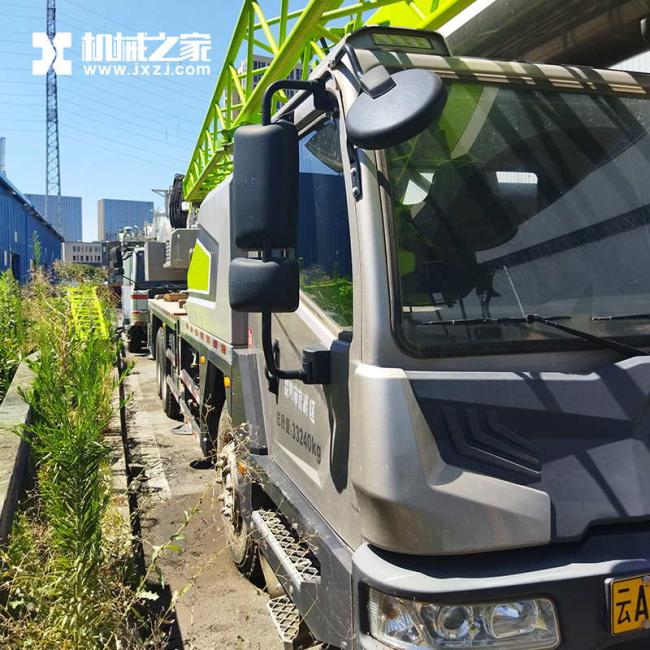

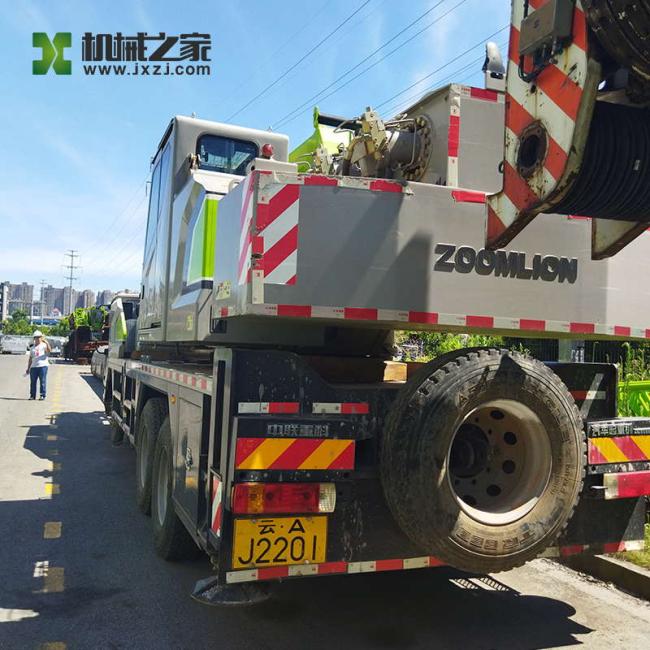

Used Zoomlion Truck Crane Zoomlion ZLG5333JQZ25V Second Hand Truck Mobile Crane
Used Zoomlion Truck Crane Zoomlion ZLG5333JQZ25V Second Hand Truck Mobile Crane
Production Details:
|
|
JQZ25V |
Boom Type | Telescopic |
|
|
25000 kg | Max. Lifting Height of Jib | 42m |
|
|
35% | Working Diameter | 24m |
|
|
Complies with Min. export packaging requirements | Specification |
128700×2550×3520MM |
|
|
60000M | Working hours | 2200h |
|
|
Zoomlion | Place of Origin | China |
|
|
Supply Capacity |
10 Units/ Month |
- Boom
The 5-section U-shaped 42m main boom is the longest, with the leading comprehensive lifting performance among the same tonnage truck cranes in the industry.
- Operation
The customized slow gear function can keep the min. stable slewing speed at 0.1°/s and min. stable hosting speed at 2.5 m/min. Therefore, the extremely precise lifting operation can be guaranteed.
- SUV Travelling
The powerful transmission system, specifically designed for construction machinery, with large torque output at low speed, enables the max. travelling speed to 90 km/h.
This crane meets the requirements for category G vehicle. Accordingly, it possesses favorable passing ability.
Environment
Intelligent multi-power mode energy saving system ensures the average fuel consumption 3.0 L/h, which saves fuel by 20% in general.
- Intelligent communication
Remote information platform (RIP) realizes the transfer of vehicle-mounted information, and information management through Apps of mobile phone.
Product Parameters:
|
Specifications
|
Unit
|
Value
|
| Max. rated lifting capacity | kg | 25000 |
| Max. load moment of basic boom | kN.m | 1132 |
| Max. load moment of main boom (fully extended) | kN.m | 768 |
| Main boom length (fully extended) | m | 42 |
| Main boom length (fully extended) + longest jib length | m | 50 |
| Max. hoist rope speed(main/auxiliary hoist winch) | m/min | 140 / 125 |
| Max. travelling speed | km/h | 90 |
| Deadweight in travelling condition | kg | 33400 |
| Overall dimensions(L × W × H ) | mm | 128700 × 2550 × 3520 |
| Outrigger spread (L × W) | m | 5.39 × 6.3 |
| Rated power / RPM | kW/r/min | 220 / 2100 |
| Max. torque / RPM | N.m/r/min | 1250 / (1200 – 1700) |
