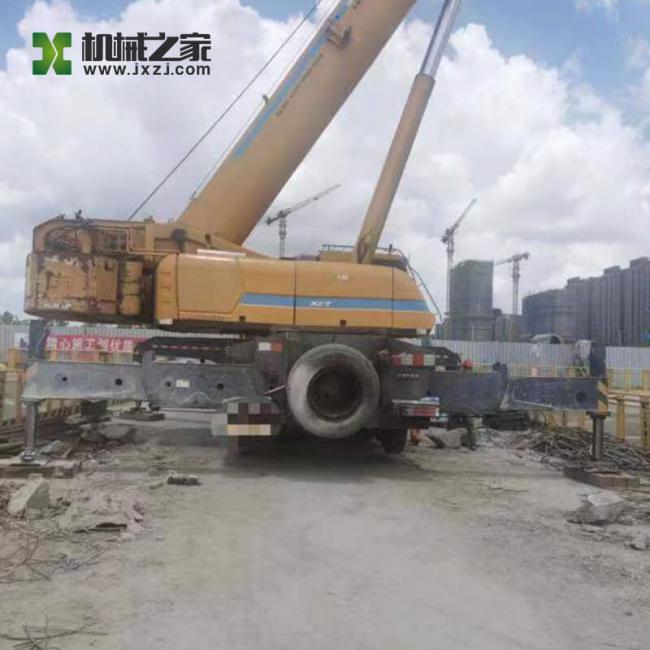

Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane

Used Truck Crane XCMG XCT100 Second Hand Truck Mobile Crane

Production Details:

• XCMG XCT100 is known as a hundred-ton-class legendary boutique. Six-section 65m main boom, the Max. boom length can reach 99.5m, industry performance;

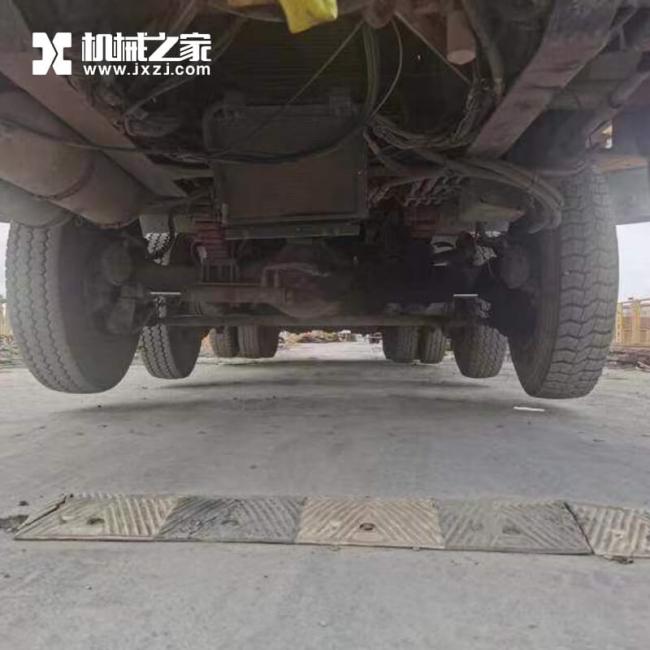

• five-axle off-road chassis, dual-mode time-sharing switching drive system, free switching between three-wheel drive and four-wheel drive, perfect integration of power and economy;
• original cylinder Controlled multi-mode follow-up steering system, the Min. turning diameter is only 20m, with the flexibility of all-terrain products;
• the new energy-saving hydraulic system integrates ECO energy-saving control, and the operation is more economical;
• the industry's first 100-ton hydraulic single-engine system saves 40% in annual maintenance costs %;
• It can carry a 22.5t balance weight for short-distance transitions, which is efficient and convenient.

Product Parameters:

Item	XCT100
Dimensions
Overall length of the whole machine (mm)	15600
Overall width of the whole machine (mm)	3000
Overall height of the whole machine (mm)	3870
Wheelbase(mm)	1920+3500+1420+1505
Tire distance(mm)	2449/2449/2315/2315/2449
Weight parameter	*
Deadweight in traveling condition (kg)	54990
Axle load(kg)	10000+10000+13000+13000+9000
Dynamic parameters	*
Engine model	(Operating cab) Weichai WP6G240E330 or Mercedes-Benz OM906LA.E3A/2 (Driving Cab) WP12.430E50 or ISM11E5 440
Engine rated power (kw/(r/min))	(Operating cab) 176/2300 or 190/2200 (Driving Cab) 316/1900 or 324/1900
Engine rated torque (N.m/(r/min))	(Operating cab) 860/(1200-1700) or 1000/(1200-1600) (Driving Cab) 2060/(1100-1400) or 2080/1200
Traveling parameters	*
Traveling	*
Max. traveling speed (km/h)	90
Min. stable driving speed (km/h)	2.5～3
Turning	*
Min. turning diameter (m)	23
Boom head Min. turning diameter (m)	26.8
Max. gradeability(%)	45
Min. ground clearance (mm)	326
Approach angle (°)	18
Departure angle (°)	13
Braking distance (m)	≤10
Oil consumption per 100 kilometers (L)	70 (Weichai)/65 (Xikang)
Main performance parameters	*
Max. rated total lifting weight (t)	100
Min. rated amplitude (m)	3
Max. load moment of the basic boom (kN m)	4704
Turntable tail turning radius (mm)	4970
Outrigger	*
Longitudinal (m)	-
Horizontal (m)	-
Max. lift height	*
Basic boom (m)	13.9
The longest main boom (m)	63.3
The longest main boom + jib (m)	92.6
The longest main boom + jib + extension	-
Boom length	*
Basic boom (m)	13.5
The longest main boom (m)	64
Longest main boom + jib	82.1
The longest main boom + jib + extension section (m)	96.1
Speed ​​of work	*
Max. rotation speed (r/min)	2
Lifting speed	*
Main hoisting mechanism	135
Auxiliary hoisting mechanism	105
Boom extension time	*
Full extension(s)	480
Full shrink	-
Amplitude time	*
Full lift (s)	60
Full boom drop(s)	-
Outrigger retraction--horizontal	*
Simultaneously put -- level (s)	40
At the same time closing -- level (s)	40
Outrigger retraction-vertical	*
Simultaneously put(s)	50
Simultaneous receipt (s)	-
