Electric Hydraulic Mutivable Double Disc Crane Grab Bucket Introduction
The product structure is compact,beautiful modelling,save energy and easy operation,according to the different industries and the usage situation and grab materials are divided into different selection,catch a claw is divided into many disc type and two disc type.(more disc is round and rectangular,grab claw have closed form,half open and all open form)
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket Parameters
|
Model |
Volume(m3) |
Grab self weight(t) |
Using crane ton(t) |
Motor power(KW) |
Operating Pressure bar |
Close time(S) |
|
DYZ3(0.5) |
0.5 |
1.5 |
3.2 |
11 |
180 |
10 |
|
DYZ3(0.6) |
0.6 |
1.7 |
3.2 |
11 |
180 |
11 |
|
DYZ5(0.8) |
0.8 |
2 |
5 |
15 |
180 |
13 |
|
DYZ5(1.0) |
1 |
2.5 |
5 |
15 |
180 |
14 |
|
DYZ10(2) |
2 |
4.2 |
10 |
22 |
200 |
16 |
|
DYZ52.5) |
2.5 |
2.6 |
5 |
18.5 |
180 |
17 |
|
DYZ10(3.0) |
3 |
3.8 |
10 |
18.5 |
180 |
20 |
|
DYZ10(5.5) |
5 |
4.3 |
10 |
22 |
200 |
19 |
|
DYZ16(2.5) |
2.5 |
5.5 |
16 |
30 |
200 |
16 |
|
DYZ16(8.0) |
8 |
5.6 |
16 |
30 |
200 |
19 |
|
DYZ20(4.0) |
4 |
7 |
20 |
37 |
200 |
17 |
|
DYZ20(12) |
12 |
8 |
20 |
37 |
200 |
25 |
|
DYZ25(17) |
17 |
9 |
25 |
45 |
200 |
26 |
|
DYZ30(20) |
20 |
11 |
30 |
45 |
200 |
28 |
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket Features
1. The capacity is from 5 CBM to 20 CBM;
2. Control distance is 200 meters;
3. Grab material is Q235B and Q345B (ASTM A6);
4. Single steel rope to lift grab is enough, specially for Deck crane or Portal crane;
Electric Hydraulic Mutivable Double Disc Crane Grab Bucket application
Grab bucket is more used for disperses the shape material handling. In the selection of material should be refer to physical performance, the accumulation concentration, block size, particle shape, the internal friction degree of materials and the loose degree, etc. According to the different packing density and block size, grab bucket is divided into light, medium, heavy and super-heavy. Grab material block degree is more than 60mm or more solid material, the capture cutting edge should be made tooth.

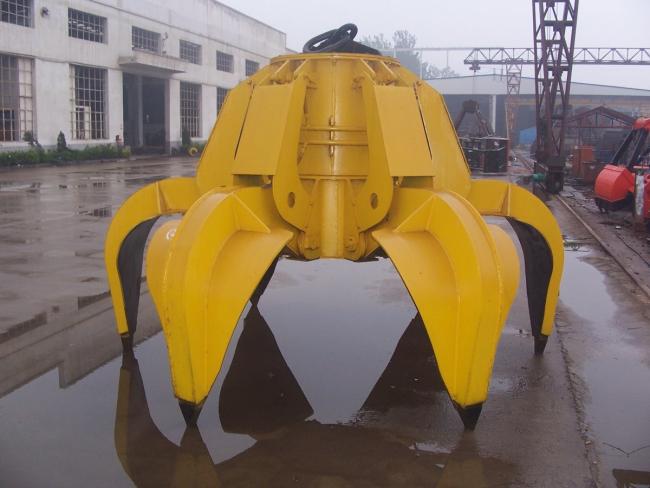

Electric Hydraulic Mutivable Double Disc Crane Grab Bucket Images
