European Single Girder Bridge Crane Information

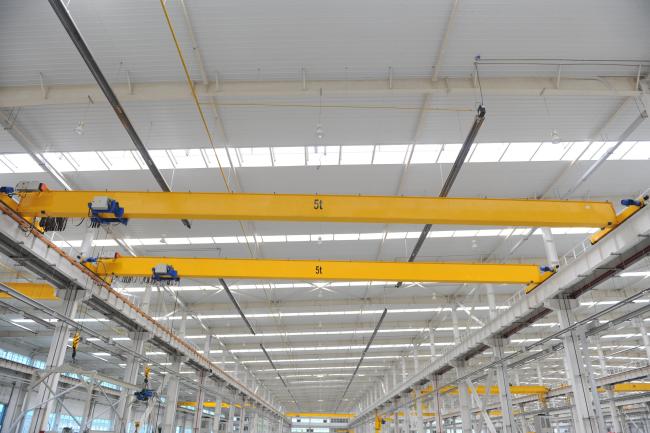

HD single girder overhead travelling cranes are designed and manufactured according to DIN, FEM, ISO standards and global advanced technology, takes optimized and reliable modular design, features maximum rigidity for a minimum dead weight. This keeps the load on the crane runway to a minimum and a cost-effective design can be selected for the building. The HD series single girder bridge crane equipped with our core technology ND or NR type series electric wire rope hoists, hoisting capacity up to 20 ton, crane span up to 35 m. Standard work duty M5.
European Single Girder Bridge Crane Specification
| Main specifications | ||
| Name | / | Single girder overhead crane and electric hoist |
| Model | / | HD |
| Crane capacity | t | 1~20 |
| Span | m | 7.5-22.5 |
| Lifting height | m | 6,9,12 |
| Control method | / | Pendent line control+Remote control |
| Power source | / | 380V 50Hz 3Phase or customized |
| Working class | / | FEM2M‐ISO A5 |
| Hoisting mechanism | ||
| Hoist type | / | Low headroom type |
| Speed | m/min | 5/0.8m/min (Double speed) |
| Motor type | / | integral structure of gear motor |
| Rope reeving system | / | 4/1 |
| Trolley traveling mechanism | ||
| Speed | m/min | 2‐20m/min ( VFD control ) |
| Crane traveling mechanism | ||
| Speed | m/min | 3.2‐32m/min ( VFD control ) |
| Whole machine | ||
| Protection grade | / | IP54 |
| Insulation class | / | F |
| Safety features | ||
| Overload protection device | ||
| Limit switch for crane traveling and lifting | ||
| Polyurethane material buffer | ||
| Voltage-loss protection device | ||
| Voltage lower protection device | ||
| Emergency stop system | ||
| Sound and Light alarm system | ||
| Phases failure protection function | ||
| Power fluctuation Protection system | ||
| Current overload protection system | ||
