Span 7.5-35m Factory Gantry Crane 10 Tone Lifting Gantry Crane

Factory Used Lifting Equipment Single Girder Gantry Crane 10 Ton

Single Girder Gantry Crane Information

Single gantry cranes only have a leg on one side and a leg on the other side running on the workshop or trestle bridge. In order to expand the scope of crane operation, the main girder can extend to one side or both sides to extend the leg to form a cantilever. It is used together with CD, MD and other models of electric hoist. The hoist runs on i-beam and the crane is a small and medium-sized crane.

The crane consists of the door frame (girder, leg and the lower beam, etc.), electric hoist, crane operation mechanism and electric control parts. The hoisting, transverse and longitudinal movement all have limited switch protection or buffer device, and is equipped with windproof clamp rail safety device. Working class is A3, there are two operating types , ground control and cabin control. If there are special requirements for weight lifting and other parameters, we can customize them according to the user's needs.

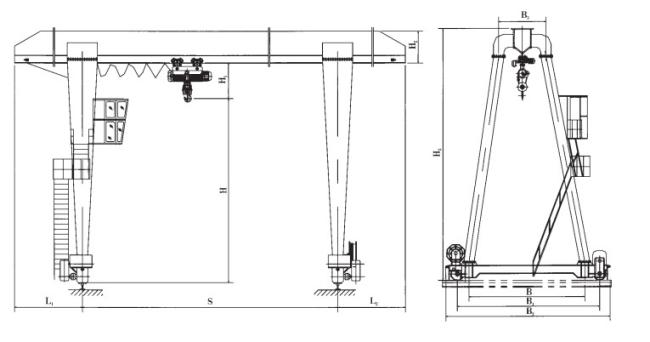

Single Girder Gantry Crane Parameter

Safey Features of Our Gantry Cranes

1.Crane traveling limit switch

2.Weight overload protection device

3.Lifting height limit device

4.Voltage lower protection function

5.Phase sequence protection function

6.Warning indicator: flashing lights and warning sound.

7.Emergency stop function

8.Rain cover for outside hoist, driving units, electrical cubicle.

9.Wireless infra-detector for anti-collusion

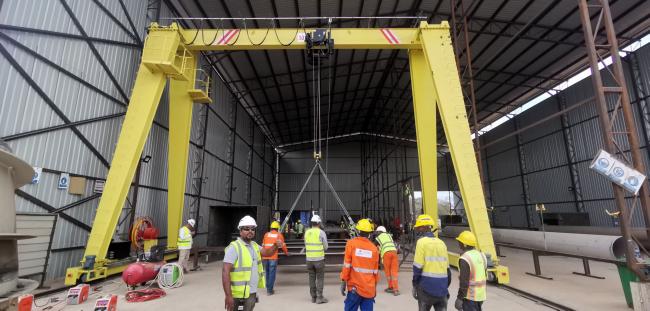

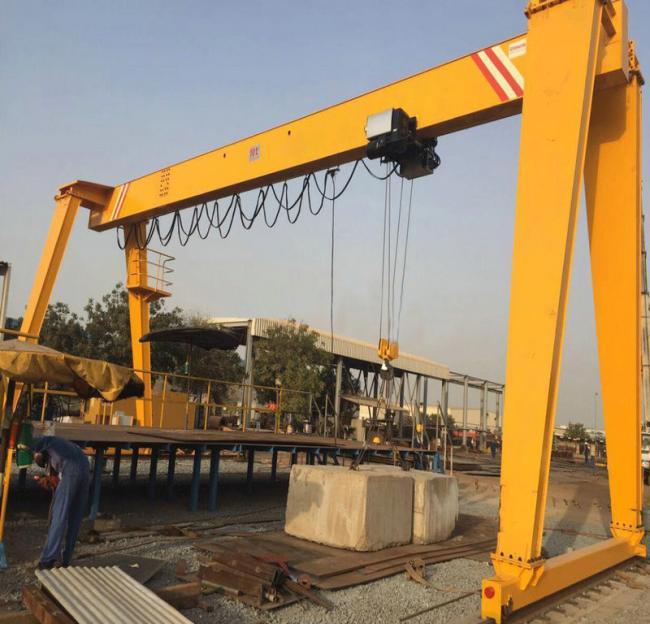

Single Girder Gantry Crane Pictures
