10-40m Span Mobile Hoist Crane Single Girder Tyre 10 Ton Gantry Crane
10-40m Span Mobile Hoist Crane Single Girder Rial Tyre 10 Ton Gantry Crane
Single Girder Rial Tyre Gantry Crane Introduction
MH Type Gantry Crane is a rail-operated lifting equipment, It is composed of beam, support legs, crane traveling mechanism,trolley, electric equipment and so on,With the electric hoist as hoisting mechanism. The whole machine has the characteristics of simple structure, convenient installation and maintenance, low cost and strong performance. so that it is applicable to outdoor operational sites of medium and small lifting load for general handlings such as factories and mines,freight yards and warehouses
Safey Features of Single Girder Rial Tyre Gantry Crane
1. Crane traveling limit switch
2. Weight overload protection device
3. Lifting height limit device
4. Voltage lower protection function
5. Phase sequence protection function
6. Warning indicator: flashing lights and warning sound.
7. Emergency stop function
8. Rain cover for outside hoist, driving units, electrical cubicle.
9. Wireless infra-detector for anti-collusion
Single Girder Rial Tyre Gantry Crane Specification
|
Rated load/ton
|
5
|
10
|
16
|
20
|
32
|
|
Span/m
|
10-40
|
||||
|
Lifting height/m
|
30
|
||||
|
Working class
|
A3/A4
|
||||
|
Lifting speed/m/min
|
8
|
7
|
3.5
|
3.5
|
3
|
|
Trolley running speed/m/min
|
20
|
20
|
20
|
20
|
20
|
|
Crane running speed/m/min
|
20
|
20
|
20
|
20
|
20
|
|
Dead weight/t
|
10.5~37.5
|
16.8~52
|
18.9~65
|
24.5~77
|
27.5~98
|
|
Number of wheels
|
4
|
4
|
4
|
4
|
4/8
|
|
Power supply
|
3AC 220~480V 50/60Hz
|
||||
|
We can design and manufacture all kinds of non-standard products according to your requirements
|
|||||

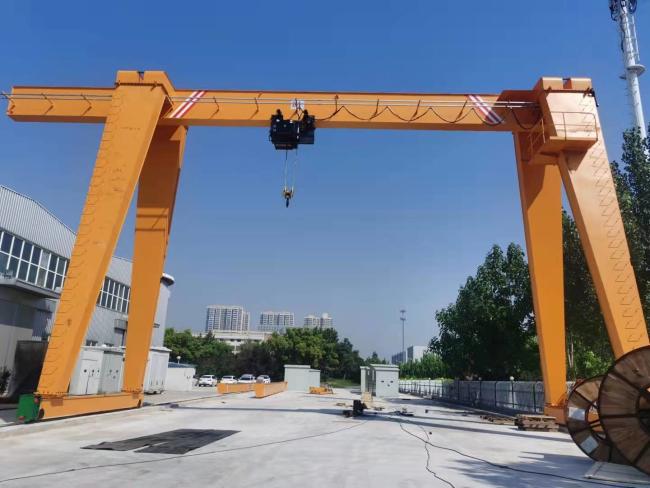

Single Girder Rial Tyre Gantry Crane Images
