Q345B QDY 50t 15t 10t 3 Ton Bridge Crane Slag Pot Lifter Foundry Crane

Foundry Usage QDY 50t 15t 10t 3t Steel Plant Double Girder Slag Pot Lifter Metallurgy Crane

Steel Plant Double Girder Metallurgy Crane Description

QDY YZ Double Girder Ladle crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.

Steel Plant Double Girder Metallurgy Crane Parameters

Steel Plant Double Girder Metallurgy Crane Working Condition

1.Working tempreture:-10~+60°C,
2.Work class:A6-A8,
3.Power Source:3ph,380V,50HZ or other under customer requirement.


Steel Plant Double Girder Metallurgy Crane Safety Feature

1.Weight overload protection device,
2.Top quality long time bearing polyurethane materials buffer,
3.Crane traveling limit switch, Voltage lower protection function,
4.Emergency stop system,
5.Current overload protection system and so on!

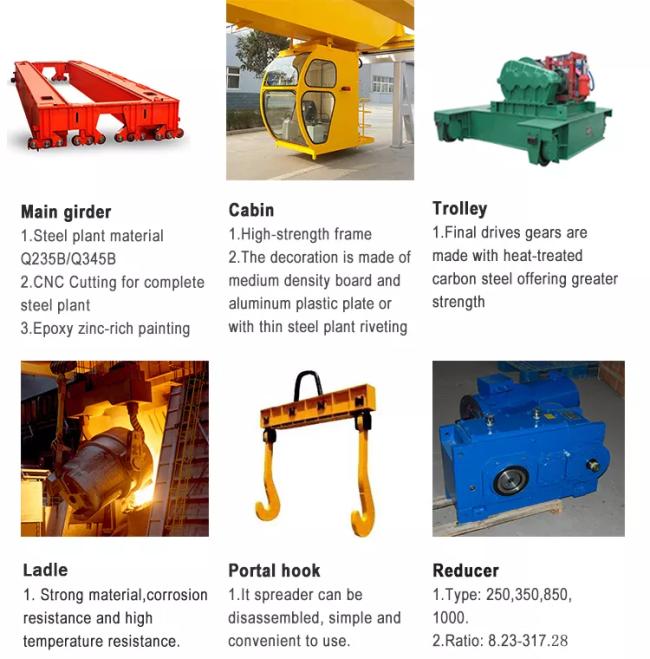

Steel Plant Double Girder Metallurgy Crane Details
