Q235B Marine Deck Crane Fixed Boom Crane 3 - 30m Working Radius
Q235B Marine Deck Crane Stiff Boom Crane 3 - 30m Working Radius
Ship Deck Crane Information
Marine deck crane, electric or electro-hydraulic controlled, used for loading and unloading cargo on bulk carriers or container ships. With wire rope amplitude or hydraulic cylinder amplitude.
The ship deck crane can be rotated 360 degrees and the amplitude can be changed over the length of the boom. Fully hydraulic drive, motor, hydraulic pump, hydraulic motor, valve block, tank, drum and other components are arranged in a cylindrical rotating cylinder, the internal space structure is compact, so that the ship has more deck area can be used.
Ship Deck Crane Parameter
| Capacity | 30 Ton | 36Ton | |
| Hoisting load | 30/12/5 t | 36/14/5 t | |
| Hoisting speed | 18.5/37/63m/min. | 16/32/55m//min. | |
| Lowering speed | 53m/min. | 55m/min. | |
| Luffing speed | 41-52 sec. | 54-58sec. | |
| Slewing speed | 0.5-0.75rpm. | 0.45-0.6rpm. | |
| Working | Max. | 22-30 m | 26-30m |
| radius | Min. | 4 -5 m | 4.5-5m |
| Slewing angle | 360.endless | ||
| Winding height | 35m | ||
Ship Deck Crane Advantages
Ship deck crane has the advantages of large lifting capacity, easy operation, impact resistance, good braking performance, safety and reliability, high loading and unloading efficiency, flexible maneuverability and so on.
The hydraulic system innovatively adopts closed system instead of open system to solve the problem of lifting brake control. After successfully applying the closed system deck crane, the hydraulic oil consumption is reduced by more than half compared with the open system deck crane, and the power consumption is also greatly reduced. This is a major breakthrough in energy conservation and environmental protection.
There is no tedious preparation work before Marine Deck Crane operation. The hook can be attached with a grab bucket to load and unload bulk goods, which has good adaptability to the goods and is widely used.
• Electric & Hydraulic drive
• IACS Classfication
• Cabin operation, radio control
• Option: remote controller,spreader
• Usage for container, cargo for ship

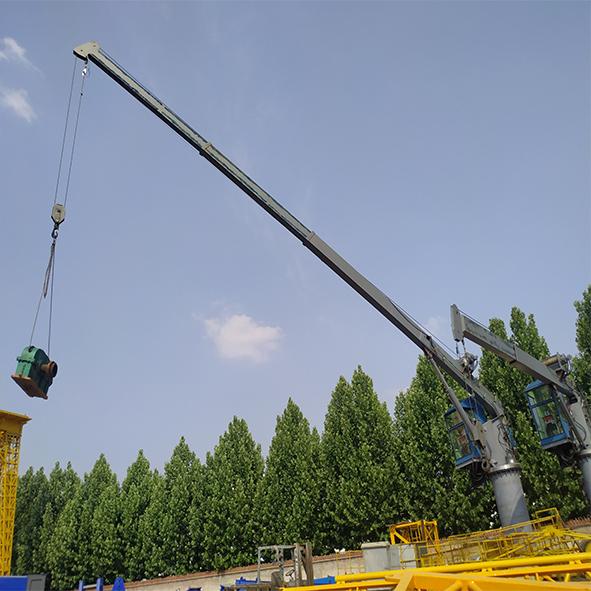

Ship Deck Crane Images
