Lattice Boom Portal Crane Information
Portal crane design and manufacturing standards: port gantry crane code (GB/T17495-1998), lifting equipment safety code (GB/T14406-1993); ISO standard, fema standard, JIS standard;
Portal cranes have a variety of uses, such as port handling, shipyard material handling, shipbuilding and repair yards, metallurgy industry. The four-link shipyard gantry crane is composed of a frame, a lifting mechanism, a luffing mechanism, a slewing mechanism, a walking mechanism, a sling device (grab, container sling, hook), electrical equipment and other safety auxiliary devices.
Lattice Boom Portal Crane Parameter

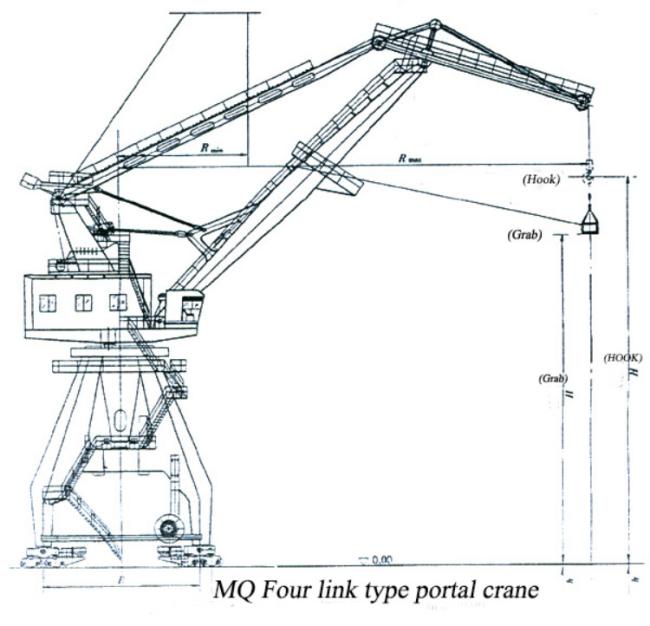

Four-link Type Portal Crane
| Type | Cap(t) | Max(m) | Min(m) | Up(m) | Down(m) | Span*Base | Max wheel load |
| MQ0525 | 5 | 25 | 8 | 12 | 9 | 10.5*10.5 | 180 |
| MQ1033 | 10 | 33 | 9.5 | 20 | 12 | 10.5*10.5 | 185 |
| MQ1633 | 16 | 33 | 9.5 | 28 | 15 | 10.5*10.5 | 250 |
| MQ2533 | 25 | 33 | 9.5 | 28 | 15 | 10.5*10.5 | 260 |
| MQ3240 | 32 | 40 | 12 | 35 | 13 | 12*10.5 | 320 |
| MQ4570 | 45 | 70 | 25 | 45 | 13 | 12*12 | 320 |
| MQ5035 | 50 | 35 | 11.5 | 40 | 0 | 12*10.5 | 280 |

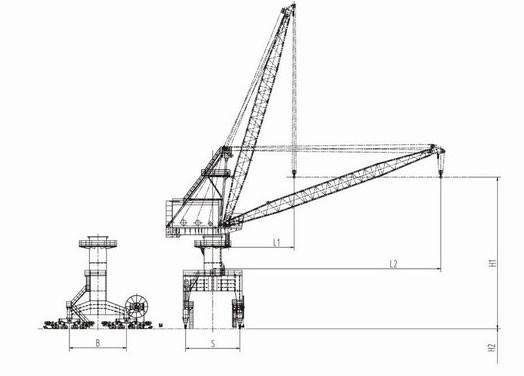

Single-jib Type Portal Crane
| Type | Cap(t) | Max(m) | Min(m) | Up(m) | Down(m) | Span*Base | Max wheel load |
| MQC0209 | 2 | 9 | 4 | 6 | 6 | 4.5*4.5 | 40 |
| MQC0315 | 3.2 | 15 | 5.6 | 12 | 8 | 6*6 | 80 |
| MQC0322 | 3.2 | 22 | 7 | 14 | 8 | 6*6 | 90 |
| MQC0515 | 5 | 15 | 6 | 12 | 9 | 6*6 | 120 |
| MQC0518 | 5 | 18 | 6 | 15 | 9 | 6*6 | 200 |
| MQC0520 | 5 | 20 | 7.5 | 16 | 18 | 6*6 | 200 |
| MQC3056 | 30 | 56 | 18 | 45 | 5 | 10*10.5 | 300 |
| MQC4580 | 45 | 80 | 24 | 50 | 14 | 12*14 | 340 |
| MQC5070 | 50 | 22 | 70 | 50 | 13 | 10.5*14 | 300 |
| MQC6345 | 63 | 45 | 17 | 40 | 10 | 10*10.5 | 250 |
Lattice Boom Portal Crane Features
1. Quickened the turnover and the operation of loading and unloading.
2. High working efficiency, compact frame,
3. Calm movement, comfortable operation, safety and reliable.
4. Convenience maintenance, nice appearance and so on
5. Crane drive: IP54, level F insulation
6. Especially suitable for the port lifting.
8. Designed according to your request
