16 Ton Single Girder Gantry Crane AC380V

16 Ton Single Girder Gantry Crane

Single Girder Gantry Crane Description

1. Gantry Crane is widely used together with electric hoist or winch or trolley for lifting device.
2. It is a light, medium and heavy size crane which travels in track.
3. Its proper lifting weight is 5 to 500 tons, and proper span is 18 to 50 meters or as per your requirement.
4. Its proper working temperature is -20--+60 centigrade.
5. This kind of crane is composed of main beam, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch.
6. Gantry cranes are widely used in workshop, storage, port and hydroelectric power station and other outdoor place.
7. Power is supplied by cable or slide wire.

Single Girder Gantry Crane Technical Data

Gantry Crane General Features

1. Crane material: Q235, Q345B/Q345D
2. Strong box type, no-welding joint strong box type, by machine hand, strong and beautiful.
3. Wheels are vacuum casting by ourselves, intermediate frequency quenching.
4. Wheels, wire rope, drum, gears, coupling are manufactured by our CNC machines.
5. Nanjing special or Nanjing Brand motor, top quality in China.
6. Electrical equipment: Siemens or Schneider brand.
7. Control method: Cabin control, wireless remote control or pendant control, you can choose two of them.

Box type gantry crane VS Truss type gantry crane

There are two type structure for the main girder and support leg as optional:
1. Truss type advantage:
A. Small windward side and wind resistance
B. Light dead weight, Low cost
C. Nice appearance
2. Box type advantage:
A. Compact structure, good rigidity, strong lifting capacity, indoor use available
B. Characteristic of slim body, save shipping cost.

Gantry Crane Safety Features

1. Overload protection device
2. Top quality long time bearing polyurethane materials buffer
3. Crane traveling limit switch
4. Voltage lower protection function
5. Emergency stop system
6. Lifting height limit device

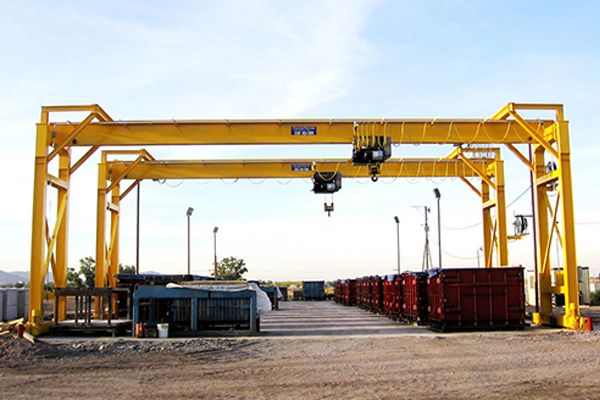

Single Girder Gantry Crane Images


Looking forward to receive your enquiry with the below details information

1. Lifting capacity
2. Span ( rail centre to centre )
3. The required lifting height ( from hook to the ground )
4. Crane travelling length
5. What will be lifted by the crane
6. The crane and hoist movement speed (m/min)
7. The rail length and the height.
8. Single speed or double speed for lifting and travelling?
9. Driver cabine control or pendant control?
10. How many hours work per day?
11. Power source: 380V, 50Hz, 3phase or others?
