5 Ton 10 Ton 16 Ton Single Beam EOT Crane Q235B Warehouse Bridge Crane
5 Ton 10 Ton 16 Ton Single Beam EOT Overhead Bridge Travelling Crane For Warehouse
Single Beam EOT Overhead Bridge Travelling Crane Information
The LDA single-girder bridge crane has a more reasonable structure, and the overall steel strength is higher. Used together with CD1 and MD1 electric hoist, it is a light crane with a lifting capacity of 1 ton to 32 tons. The span is 7.5m ~ 31.5m. The working level is A3~A4.
This product is widely used in the lifting of goods in workshops, warehouses and material warehouses. Do not use this equipment in flammable, explosive or corrosive atmospheres. This product has two modes of operation: ground or operating room, open and closed, and can be installed on the left or right according to the actual situation.
Single Beam EOT Overhead Bridge Travelling Crane Main Specifications
| Lifting capacity | 1t-20t | |
| Span | 7.5m-28.5m | |
| crane travelling mechanism | travelling speed (m/min) | 20 |
| speed ratio | 58.95 | |
| motor type | cone squirrel-cage | |
| motor power(kw) | 0.8*2 1.5*2 2.2*2 | |
| rotational speed(r/min) | 1380 | |
| lifting mechanism | model | CD/MD/HC |
| lifting speed(m/min) | 8/0.8 7/0.7 3.5/0.35 | |
| lifting height(m) | 6/9/12/18/24 | |
| travelling speed (m/min) | 20 | |
| motor type | explosion proof cone squirrel-cage | |
| working system | / | internediate Jc=25% |
| wheel diameter | mm | Φ270 Φ400 |
Safe features of Single Beam EOT Overhead Bridge Travelling Crane
✔ Weight overload protective device
✔ Top quality polyurethane buffer
✔ Crane traveling limit switch and lifting limit switch
✔ Low voltage protection function
✔ Emergency stop system

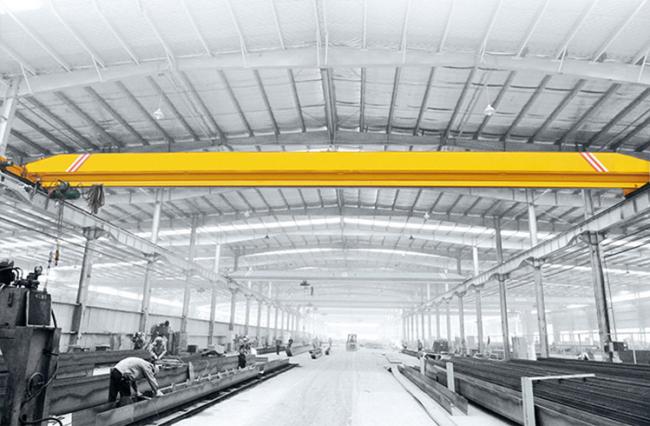

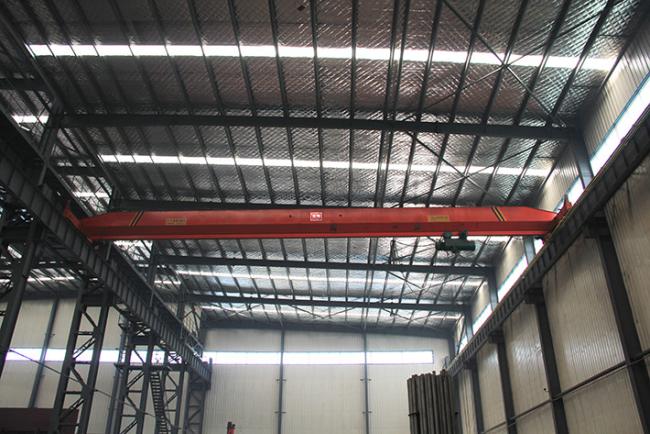

Single Beam EOT Overhead Bridge Travelling Crane Details
If you need heavy capacity crane, more than 20 tons, you can choose Double Girder Overhead Crane
