Remote Cabin Control Electric Overhead Crane Double Beam EOT Crane 7.5m~31.5m Span

Remote Cabin Control Electric Overhead Crane Double Beam Bridge EOT Crane

Electric Overhead Crane Double Beam Breif Introduction

1. The main beam of the crane adopts a computer-optimized box section, and the end beam adopts a torsional rigid welded box section design. The main beam and end beam are connected by high-strength bolts, and our high-precision processing equipment ensures the connection accuracy and makes the crane run smoothly.

2. Modular design, using high-quality components and series of modules to form rich product specifications, modular, standardized, and mass production mode to ensure product quality, shorten manufacturing cycle, and facilitate transportation and installation.

3. By adopting compact hoist and high-strength materials, the size, wheel load and weight of the crane are greatly reduced, which can reduce the height of the building and reduce the construction cost of the plant.

4. Compact structure, small clearance, small size, large working range, and high production efficiency.

Electric Overhead Crane Double Beam Technical Specification Table

Electric Overhead Crane Double Beam Features

1). Reasonable structure, strong bearing capacity
2). Low noise, soft start and stop
3). Safe and reliable operation
4). Spacious cabin and wide view
5). Low maintenance cost and long service life
6). Strong box type, machine hand welded.
7). Wheel vacuum casting, medium frequency quenching
8). Wheels, wire rope drums, gears, couplings are processed by CNC machining center, TOP quality control.
9). Heavy-duty slip ring motor, or variable frequency speed regulating square cage motor, IP54 or IP44, insulation class F or H, soft start and smooth operation.
10). Siemens main electrical components, durable and safe in operation

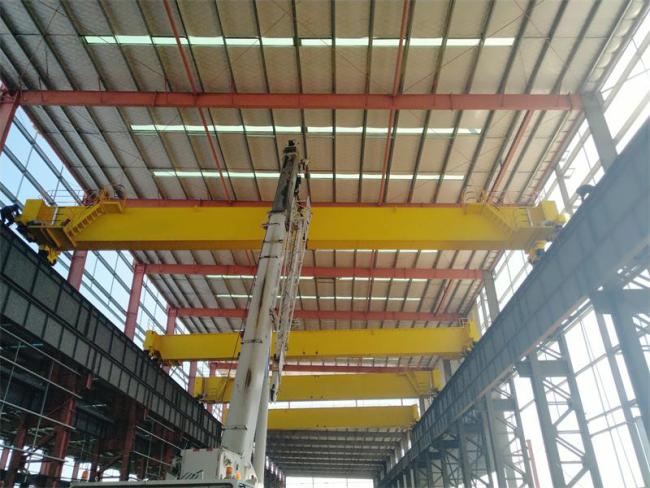

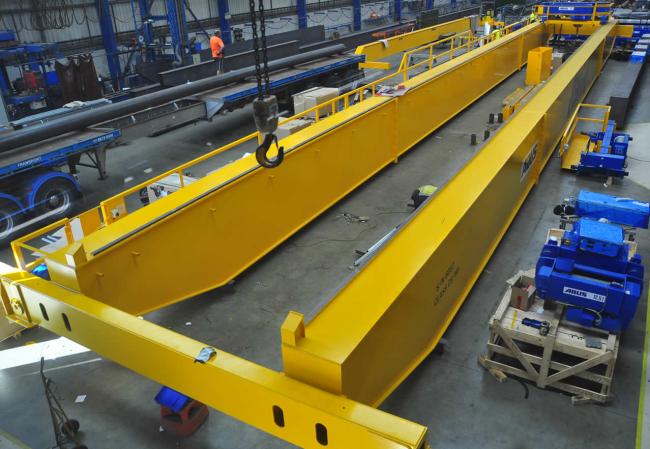

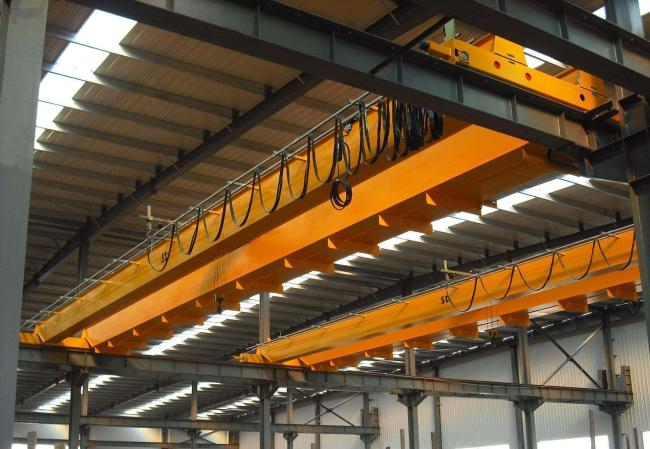

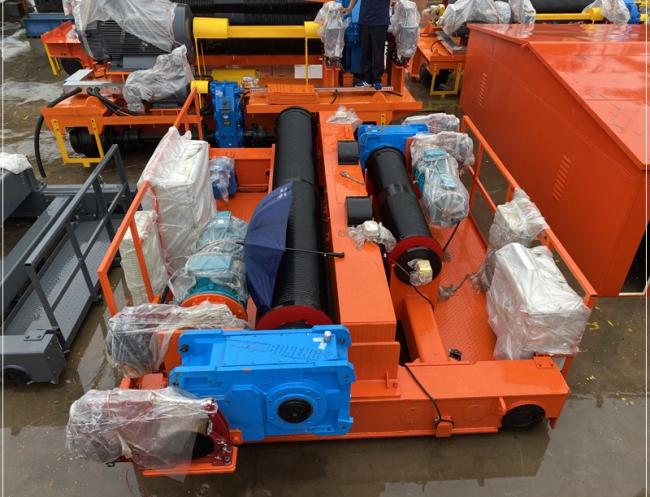

Electric Overhead Crane Double Beam​ Pictures

​
