Q235B Double Beam Container Gantry Crane Heavy Duty 60 Ton For Port

Heavy Duty 60 Ton Double Beam Container Gantry Crane Port Crane

Double Beam Container Gantry Crane Introduction

Rail Mounted Container Gantry Crane(RMG) is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.

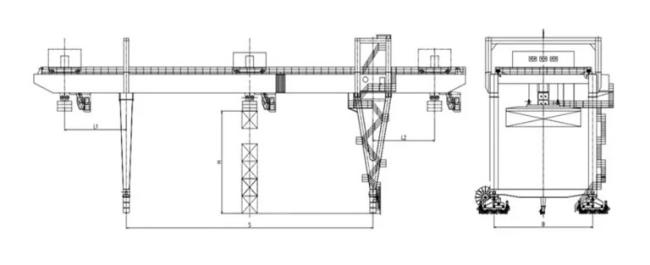

Double Beam Container Gantry Crane Specification

Double Beam Container Gantry Crane Advantage

1.Double box beam with steel legs moving through the ground beam as crane travelling system

2.The camber of main beam will be designed as Span*1-1.4/1000.

3.Steel Material: Q235 or Q345

4.Shot-blasting Sa2.5 for main girder and supporting beam

5.Epoxy zinc rich high quality painting.

6.Electrification and outfitting

7.Conductor power supply: Cable Reel or busbar.

8.Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run simultaneously different design duo to meet crane applications

9.Whole layout provides good protection against special working environment. Such as gas workshop

Double Beam Container Gantry Crane Details
