2000 To 20000 Psi Tubing Head With Dual Tubing Hanger For Wellhead

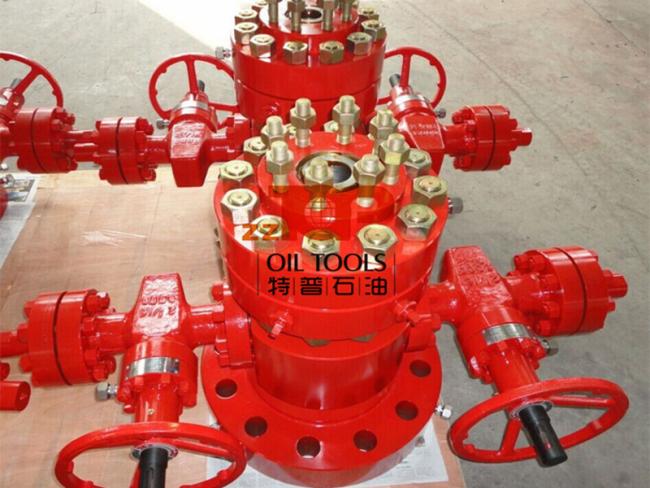

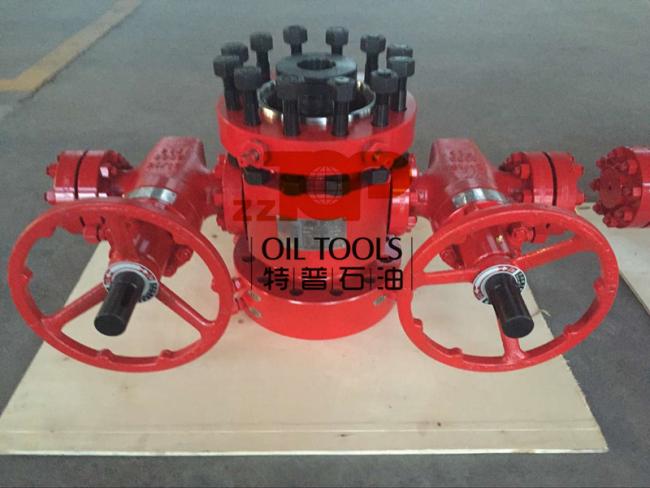

API 6A Tubing Head with Tubing Hanger For Wellhead Equipment
The Tubing Head is the part of wellhead equipment, and features a versatile straight bore design for single and multiple completions. This design of tubing head accepts all tubing hangers and easily converts from a single completion to multiple completion with the addition and alignment pins. Tubing hanger for tubing head has straight type seat bore and 45° Core of hanging shoulder, with strong loading ability.
The connecting type of side outlet in tubing head is bolted flange with VR thread for valve-replacement operation. In the bottom flange sets secondary seal mechanism and sealing test port. Tubing hanger and tubing head adaptor can be penetrated through by cable or cable penetrator and set with control pipeline interface. Tubing hanger can be set with BPV thread as required.
Technical Parameter of Tubing Head
| Size: | 2-1/16" - 13-5/8" |
| Rated Working Pressure: | 2000 PSI - 20000 PSI |
| Top Connection Type: | Studded or UPTBG Threaded |
| Material Class: | AA, BB, CC, DD, EE, FF |
| Product Specification Level: | PSL1, PSL2, PSL3, PSL4 |
| Temp Class: | L, P, R, S, T, U, V |
| Performance Requirement: | PR1, PR2 |
| Bottom Connection Type: | Flange |
| Standard | API Spec 6A, NACE-MR0175 |
| Application: | Tubing Head, Christmas Tree |
