Fracturing Frac Goat Head Wellhead Equipment For Wellhead Frac Tree
Price:
USD 1-10000/set
MOQ:
1 set
Delivery Time:
30-50 days
Brand:
ZZ TOP OIL TOOLS
Product Description

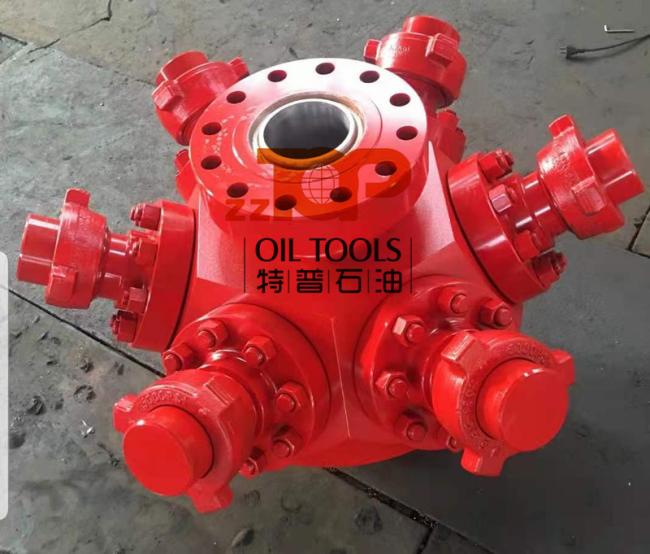

API 6A Frac Head / Fracturing Head / Goat Head For Wellhead Frac Tree
Frac head is a kind of wellhead equipment and often used on frac tree and frac stack during oil and gas well fracturing work. The frac head is often in studded and flange-end connections. The frac head are own various sizes and inlets used to tie multiple frac lines into the frac tree we can also design many type of the frac head as per the requirements. The frac head / goat head is designed to provide systematic and safe fluid flow while pumping high volumes at extreme pressures during frac completions
Technical parameter of Frac Head
| Main Bore Size | 4-1/16", 5-1/8", 7-1/16" |
| Outlet Size | 3-1/16", 4-1/16" |
| Number of Outlets | 4, 6 |
| Outlet Angles | 45 degree or 60 degree |
| Standards | API Spec 6A, NACE MR0175 |
| Working Pressure | 5000PSI/5M, 10000 PSI/10M, 15000 PSI/15M |
| Material Class | DD, EE, FF |
| Temp Class | L, P, R, S, T, U, V |
| Performance Requirement | PR1, PR2 |
| Product Specification Level | PSL1, PSL2, PSL3, PSL4 |
| Application | Frac Tree, Frac Wellhead Assembly |
| Material Class: | DD, EE, FF |
| Temp Class: | L, P, R, S, T, U, V |
| Performance Requirement: | PR1, PR2 |
| Product Specification Level: | PSL1, PSL2, PSL3, PSL4 |
| Application | Frac Tree, Frac Wellhead Assembly |
