15000psi Hydraulic Tool Catcher For Wellhead Pressure Control Equipment ISO

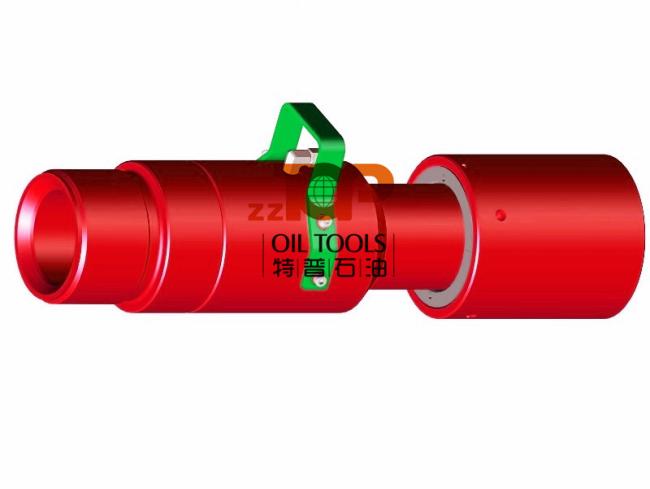

Hydraulic Tool Catcher For Wireline Pressure Control Equipment
The Hydraulic Tool Catcher is the component of wireline pressure control equipment, and designed to engage and retain the tool top fish neck or rope socket of any tool string that has accidentally collides with the stuffing box or grease injection head, and strips off the wireline from the rope socket. The hydraulic control tool catcher is a safety device, which is mounted on the lower portion of the seal head and on the upper portion of the lubricator string.It will prevent the tool string from falling downhole. The Hydraulic Tool Catcher is released hydraulically by utilizing a hand pump
Technical parameter of Hydraulic Tool Catcher
| Type | ZQ-105 |
| Working pressure | 105Mpa(15000psi) |
| Max. Hydraulic system working pressure | 21Mpa |
| Cable cap size | 1.25”-1.75” |
| Connection type | Quick Union 5 3/4”-4THD(4.000”) OTIS |
| Material | AISI4130/35CrMo/EE PSL3 |
| Wokring Temp. | -29～121℃ |
| Medium | Crude Oil, Gas, Mud, Water(H2S) |
| Connection type | Quick Union 5 3/4”-4THD(4.000”) OTIS |
| Material | AISI4130/35CrMo/EE PSL3 |
| Wokring Temp. | -29～121℃ |
| Medium | Crude Oil, Gas, Mud, Water(H2S) |
