16" Wireline PCE Hay Pulley For Wireline Pressure Control Equipment
Price:
USD 1-10000/set
MOQ:
1 set
Delivery Time:
30-50 days
Brand:
ZZ TOP OIL TOOLS
Product Description

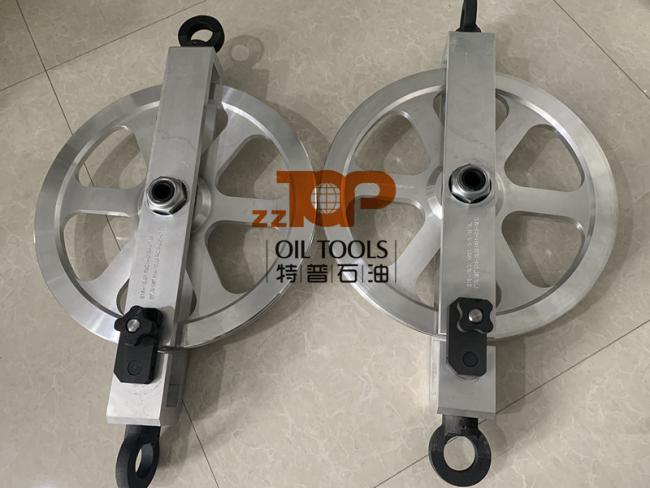

Wireline PCE Hay Pulley For Wireline Pressure Control Equipment
The Hay Pulley is a part of wireline pressure control equipmen and used to control and manipulate ,the direction of the wireline from a horizontal position to a vertical position or route to the stuffing box from the wireline unit. The wireline pressure control hay pulley is generally positioned at the wellhead on the lubricator to reduce side pull force and to avoid lateral loading of the lubricator during heavy jarring operations.
Technical parameter of Wireline PCE Hay Pulley
| Nominal Size | Wire Range | Safety Load | |
| 10” | 0.092”-0.125” | 2500kgs | |
| 11” | 0.092”-0.125” | 2500kgs | |
| 12” | 0.092”-0.125” | 2500kgs | |
| 13” | 0.092”-0.125” | 2500kgs | |
| 14” | 0.092”-0.125” | 2500kgs | |
| 16” | 0.092”-0.187” | 5000kgs | |
