LFP Lithium Ion Battery Cathode Raw Materials LMFP Manganese Ion Phosphate Battery Powder LiFePO4
LFP Lithium Ion Battery Cathode Raw Materials LMFP Manganese Ion Phosphate Battery Powder LiFePO4
The theoretical capacity of lithium iron manganese phosphate is 170mAh/g, which is the
same as that of lithium iron phosphate, but its electrode potential relative to Li+/Li is 4.1V,
which is much higher than the 3.4V of lithium iron phosphate, and it is located in the stable
electricity of the organic electrolyte system. Chemistry window. The high potential of 4.1V gives
lithium iron manganese phosphate the potential advantage of high energy density, which is the
biggest advantage over lithium iron phosphate. In addition, the raw material cost of lithium iron
manganese phosphate is low, environmentally friendly, and the material has a broad market
prospect.
| item | Technical Standard | Classic Value |
| Particle size D50 um | 1.0-2.0 | 1.300 |
| Tap density g/cm3 | ≥7 | 0.8 |
| Compaction density g/cm3 |
≥2.2 | 2.4 |
| Specific surface area m2/g | 12.0-22.0 | 17.5 |
| carbon content % | 1.5-2.5 | 1.67 |

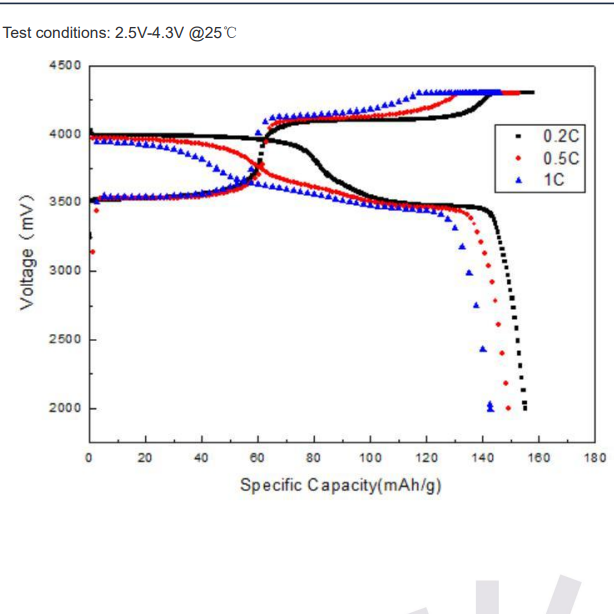

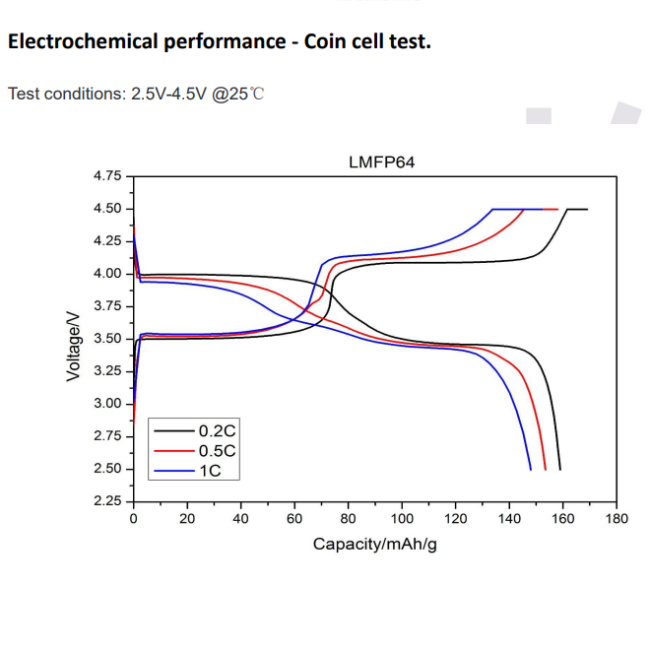

| Specific capacity mAh/g (0. 1C) | ≥155 | 157 |
| First discharge efficiency % | ≥90% |
92.5 |
| Room Temperature Conductivity (S/cm) | 1×10-4 | 2.2×10-4 |
We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.
2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
