Multifunctional Wire Cutting Machine 1.5KVA Practical MS 540AC
High Efficiency Wire Cutting Machine High Precision and Rigidity MS-540AC
Product Description
The MS-540AC is a high efficiency wire cutting machine which has high precision and high rigidity. This machine is mainly composed of machine tools, numerical control system and high-frequency power supply. It uses advanced pulse power supply, which can output super high current and achieve high precision and high finish.The molybdenum wire wound on the storage cylinder is reciprocated by the wire rack at high speed. The workpiece is fixed on the XY workbench. The X and Y directions are controlled by a stepper motor. The numerical control system sends out a signal, the stepper motor takes a step, and drives the lead screw rotation in both directions through the intermediate transmission mechanism, making X and Y worktable feed respectively. Due to the use of a newly developed numerical control system, cutting software can be processed according to the workpiece material and thickness of the different wire speed and high-frequency parameters output control, so that after multiple cutting finish greatly improved.
Main Features
- High Efficiency Numerical control System
- High Current Output
- Ecellent Structural Design
- Maximum Work Current: 10A
- Positioning Accuracy: 0.01mm
- Re-positioning Accuracy: 0.005mm
Main Parameters
| Specification & Models | MS-540AC |
| Worktable Travel (X,Y) | 500*400mm |
| Worktable (W*D) | 800*560mm |
| Working Tank Dimensions(W*D*H) | 1010*700*450mm |
| Taper Axis Travel (U, V) | 60*60mm |
| Maximum Cut Taper | 6°/80mm |
| Z Axis Travel | 280mm |
| Maximum Workpiece Thickness | 300mm |
| Maximum Workpiece Weight | 800kg |
| Speed of Electrode Wire (group wire) | 1.18-11.18m/s |
| Diameter of Electrode Wire (group wire) | 0.16-0.22mm |
| Tension of Electrode Wire (wire group) | 10-30N |
| Positioning Accuracy | 0.01mm |
| Repositioning Accuracy | 0.005mm |
| Machining Accuracy | ±0.003mm |
| Power Supply | 380V50/60Hz1.5KVA |
| Max Work Current | 10A |
| Maximum Cutting Speed | ≥280mm²/min |
| Tank Size | 130L/870*470*320mm |
| Control Cabinet Size | 580*580*1860mm |
| Machine Dimension | 1850*1550*2100mm |
Machine Weight |
2050kg |

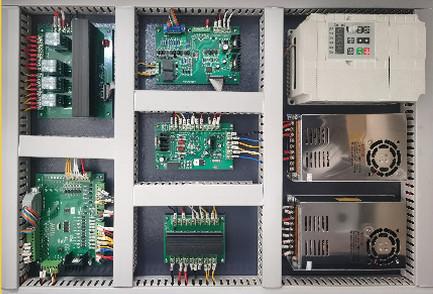

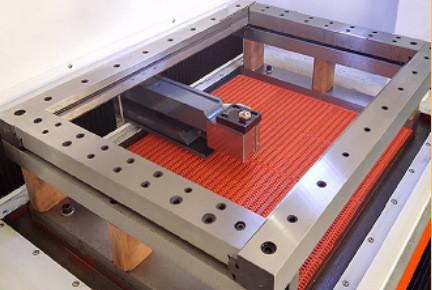

Product Details
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
