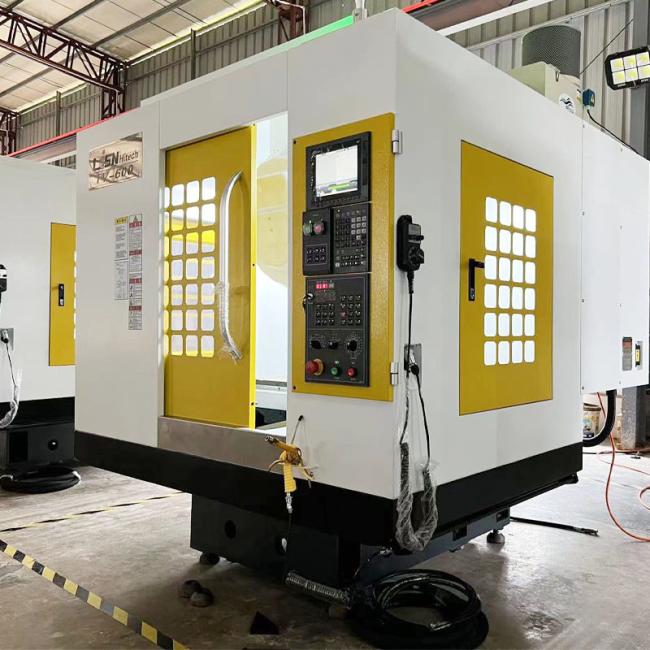

MIni TV600 CNC Drilling Machine Fanuc System High Precision
Price:
Negotiable
MOQ:
1
Delivery Time:
15-25 Work Days
Brand:
Li Zhun
Product Description
Fanuc System MIni TV600 CNC Drilling Machine CNC Milling Machine
The TV-600 is a high-performance CNC drilling and tapping machining center developed by our company. It has the characteristics of high speed, high precision, high stability and high rigidity. It is designed with ultra-rigid structure and X/Y/Z axis high precision linear guide and ball screw with locking preload design, which can provide you with fast, powerful and stable machining performance, making it suitable for high precision parts machining and mold machining.This machine adopts rear-row chip removal, with the best chip removal angle and super large flow chip flushing system. The machine adopts rear-row chip removal, with the best chip removal angle and super large flow chip flushing system. It can be widely used in the automotive, machinery, instrumentation, textile, and electronic instrumentation industries with high precision and high-efficiency machining capability at a very reasonable cost.
Main Features
- SIEMENS/FANUC/Mitsubishi CNC System Controller
- 4th/5th axes rotary table
- Tool setter
- Oil mist collector
- High rigidity of the machine
- High speed and precision spindle
- Excellent chip flushing system
- Direct coupling connection, transmission rigid, high precision and stability
Main Parameters
| ITEM | MODELS | TV600 |
| WORKTABLE (WIDTH*LENGTH) | mm | 700*420 |
| DISTANCE BETWEEN T SLOTS | mm | 3x14x125 |
| MAX LOAD BEARING OF WORKTABLE | kg | 250 |
| X/Y/Z AXIS TRAVEL | mm | 600/400/300 |
| DISTANCE FROM SPINDLE NOSE TOWORKBENCH | mm | 150-450 |
| SPINDLE HOLE TAPER | - | BT30 |
| SPINDLE SPEED RANGE | r/min | 20000 |
| TRANSMISSION OF SPINDLE BOX | BELT/DIRECT | DIRECT |
| SPINDLE MOTOR POWER | kW | 3.7/5.5( Mitsubishi)/5.5/7.5(Fanuc |
| X/Y/Z RAPID FEED SPEED | m/min | 48/48/48(60/60/60) |
| MAX CUTTING FEED SPEED | mm/min | 1-20000 |
| TOOLS MAGAZINE CAPACITY | pcs | 21 |
| X/Y/Z POSITION ACCURACY | mm | ±0.005 |
| X/Y/Z RE-POSITION ACCURACY | mm | ±0.003 |
| MACHINE DIMENSION | mm | 1930x2450x2450 |
| MACHINE WEIGHT | kg | 3000 |
Standard Configuration for TV Series
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
Optional Configuration TV Series
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler

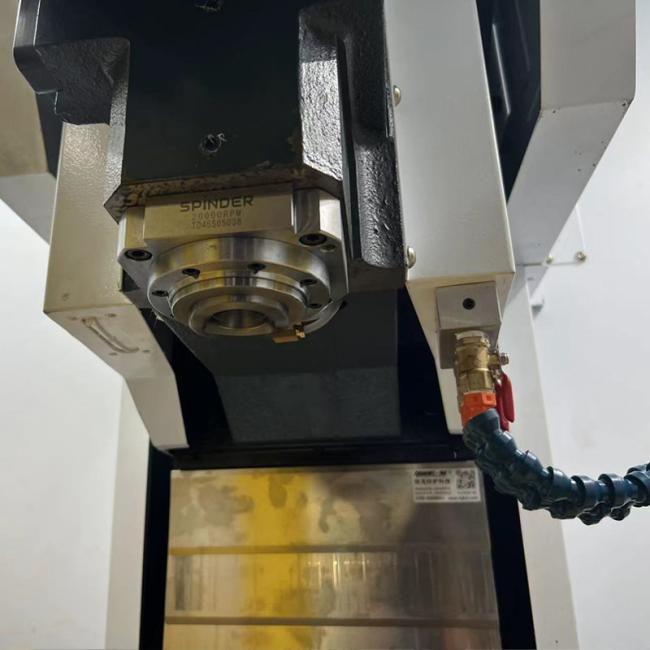

Detail drawing
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
