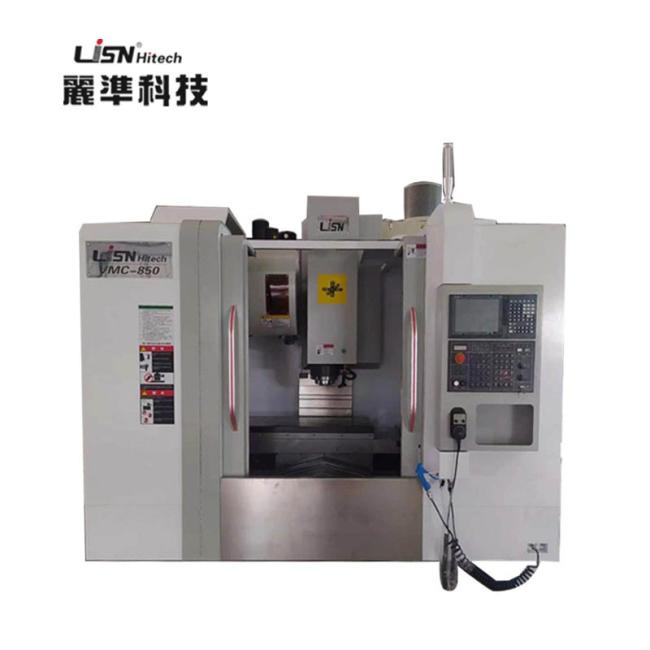

Factory Direct Supply High Vmc 850 Vertical Machining Center
Product Description:
Vertical Machine Center Vmc850 CNC Vertical Machining Center vertical machining vertical machining center 3 axis 4 axis 5 axis cnc vertical machining
1,XYZ-axis adopts precision roller linear guide-way, which is with big load capacity, realize rapid movement, and ensure position accuracy.
2,Built- - in type and high rigidity spindle ensure high precision and high efficiency cutting features.
3,Wide and solid bed and thickened and lengthened saddle ensure machine with high stability andheavy-duty cutting features.
4,XYZ- -axis adopts precision double -nut ball-screwtransmission, and imported special bearing, preload assembly, all factor sorganize high rigidity and stable ransmissin system.
5,Taiwan pneumatic cylinder;
6. Taiwan ATC, umbrella type and disc type are available;
7. Import bearings for leadsrews;
8. Import coupling;
9. Headstock Nitrogen balance system as option;
10. Full enclosed cover;
11. Rigid tapping;
12. Spindle center ring blast;
13. Work lamp;
14. Pilot lamp;
15. USB and Internet interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.

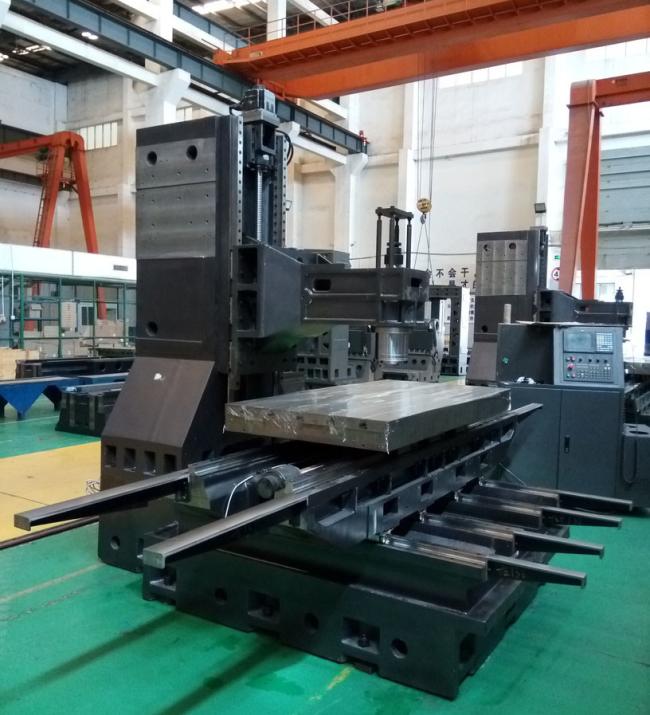

Detailed Photos
Product Parameters
| ITEM | MODELS | VMC850 |
| WORKTABLE (WIDTH*LENGTH) | mm | 450*900 |
| DISTANCE BETWEEN T SLOTS | mm | 5-18*100 |
| MAX LOAD BEARING OF WORKTABLE | kg | 600 |
| X/Y/Z AXIS TRAVEL | mm | 800/500/600 |
| 4-AXIS | / | 200 |
| 5-AXIS | / | 250 |
| DISTANCE FROM SPINDLE NOSE TOWORKBENCH | mm | 110-810/110-610 |
| SPINDLE HOLE TAPER | BT40 | |
| SPINDLE SPEED RANGE | r/min | 10000 |
| TRANSMISSION OF SPINDLE BOX | BELT/DIRECT |
BELT/DIRECT |
| SPINDLE MOTOR POWER | kW | 7.5 |
| X/Y/Z RAPID FEED SPEED | m/min | 36*36*24 |
| MAX CUTTING FEED SPEED | mm/min | 10000 |
| TOOLS MAGAZINE CAPACITY | pcs | 24 |
| FULL TOOLS MAX TOOL DIAMETER | mm | 100 |
| MAX.TOOLS ALLOWABLE WEIGHT | kg | 7 |
| MAX.TOOLS ALLOWABLE LENGTH | mm | 260 |
| X/Y/Z POSITION ACCURACY | mm | 0.008 |
| X/Y/Z RE-POSITION ACCURACY | mm | 0.005 |
| MACHINE DIMENSION | mm | 2495*1970*2360 |
| MACHINE WEIGHT | kg | 6000 |
Optional Configuration for VMC Series
1. 24 disc manipulator tool magazine
2. Crawler chips remover
3. NC rotary table (4 Axis)
4. CTS
5. Tool detection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier
