Anti Shaking Metal Gantry Type Machining Center , 35KVA Small CNC Machining Center
MOQ:
1
Delivery Time:
15 work days
Brand:
Li Zhun
Product Description

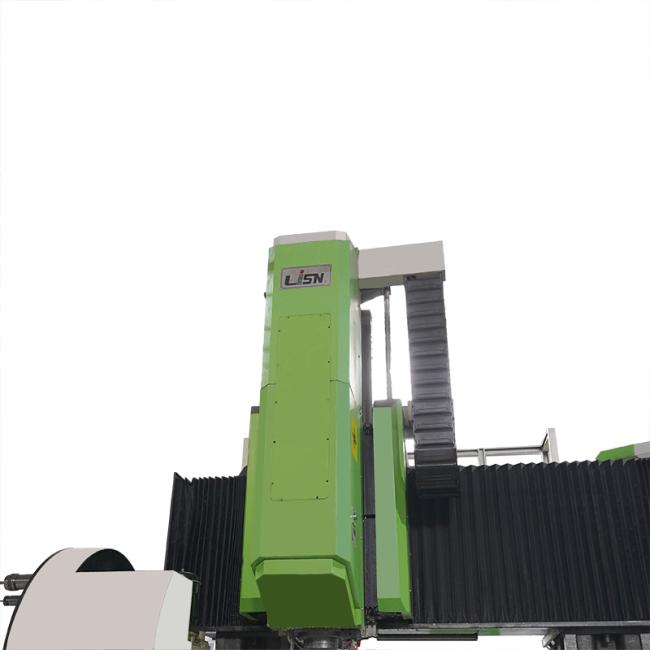

High Speed Precision Metal Metal Small CNC Gantry Machining Center DY2013
1. DY2013 series CNC gantry moving beam milling machine is a new generation of precision CNC machining machine tools, suitable for high speed steel carbide tool on ferrous metal, non-ferrous metal and part of the non-metallic material processing of the workpiece. Can complete the plane, high and low surface, inclined surface, side, groove class, boring, drilling and other processes of the milling process.
2. Transmission mode of worktable: workbench ball screw drive, driven by AC servo system to achieve stepless adjustment of working speed and positioning, and repeat positioning accuracy.
Main Technical Parameters
| ITEM | MODELS | DY2013 | DY2513 |
WORKTABLE (WIDTH*LENGTH) |
mm | 2200*1100 | 2700*1100 |
MAX LOAD BEARING OF WORKTABLE |
kg | 6 | 8 |
X/Y/Z AXIS TRAVEL |
mm | 2000/1300/800 | 2500/1300/800 |
| DISTANCE FROM SPINDLE NOSE TOWORKBENCH | mm | 150-950 | 150-950 |
SPINDLE HOLE TAPER |
BT50 | BT50 | |
SPINDLE SPEED RANGE |
r/min | 6000 | 6000 |
TRANSMISSION OF SPINDLE BOX |
BELT/DIRECT |
BELT | BELT |
DISTANCE BETWEEN TOW COLUMNS |
mm | 1300 | 1300 |
X/Y/Z RAPID FEED SPEED |
m/min | 12/12/10 | 12/12/10 |
MAX CUTTING FEED SPEED |
m/min | 10-7000 | 10-7000 |
X/Y/Z POSITION ACCURACY |
mm | ±0.015/300 | ±0.015/300 |
X/Y/Z RE-POSITION ACCURACY |
mm | ±0.01 | ±0.01 |
MACHINE DIMENSION |
mm | 6110*4282*4565 | 7100*4282*4565 |
MACHINE WEIGHT |
T | 21 | 23 |
| POWER DEMAND | KVA | 35 | 35 |
Product details
The standard configuration
1. Japan FANUC 0IMF system
2. Direct type spindle 12000 rpm
3. Spindle oil cooler
4. Flush chip removal
5. Automatic lubrication system
6. Foundation screws and spacers
7. Toolbox
8. Working light (explosion proof light)
9. Warning light
10. Spindle blowing device
11. Fully enclosed cover
12. Automatic power off system
13. Cooling water system
14. Air Gun
15. Rigid tapping function
16. Electric box heat exchanger
