High Speed CNC Drilling and Tapping Machine Center TV-550 High precision
TV-550 is a high-speed and high precision CNC Drilling and Tapping Machine Center which independently developed and produced by our company. It has the characteristics of high speed, high precision, high stability and high rigidity. The machine is equipped with high speed and high precision transmission system, which not only has no backlash problem, but also is very stable. Both three axis are using high speed and high precision linear guideway, with the characteristics of fast acceleration, it can effectively improve work efficiency and productivity. High torque motor can shorten the axial positioning time, speed up to 60m/min only take 0.21 seconds. Both X,Y and Z axis rapid feed speed is 60m/min, reducing location time by 30% to 50%. The TV-550is also using the TIDD heat source barrier spindle drive system, it can greatly improve the working efficiency and prolong the service life. The High speed and high precision linear guideway that we use on TV series CNC Drilling and Tapping Machine Center can greatly reduce the driving horsepower required by the machine.
Main Technical Parameters
| ITEM | MODELS | TV550 |
| WORKTABLE (WIDTH*LENGTH) | mm | 650*421 |
| DISTANCE BETWEEN T SLOTS | mm | 14*3*101 |
| MAX LOAD BEARING OF WORKTABLE | kg | 200 |
| X/Y/Z AXIS TRAVEL | mm | 510/400/370 |
| DISTANCE FROM SPINDLE NOSE TOWORKBENCH | mm | 130-480 |
| SPINDLE HOLE TAPER | BT30 | |
| SPINDLE SPEED RANGE | r/min | 12000 |
| TRANSMISSION OF SPINDLE BOX | BELT/DIRECT | Optional |
| SPINDLE MOTOR POWER | kW | 3.7/5.5( Mitsubishi)/5.5/7.5(Fanuc |
| X/Y/Z RAPID FEED SPEED | m/min | 48/48/60(60/60/60) |
| MAX CUTTING FEED SPEED | mm/min | 1-20000 |

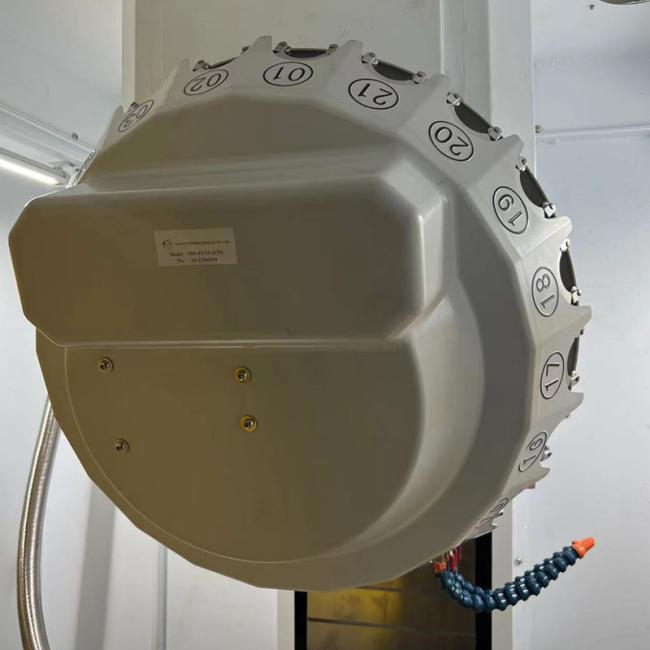

| TOOLS MAGAZINE CAPACITY | pcs | 14(Standard)16/18/21(Optional) |
| FULL TOOLS MAX TOOL DIAMETER | mm | ∅80/∅120 |
| MAX.TOOLS ALLOWABLE WEIGHT | kg | 3.5 |
| MAX.TOOLS ALLOWABLE LENGTH | mm | 200 |
| TOOL CHANGE TIME | sec | 1.8 |
| COOLING PUMP FLOW RATE | L/min | 200 |
| X/Y/Z POSITION ACCURACY | mm | ±0.005 |
| X/Y/Z RE-POSITION ACCURACY | mm | ±0.003 |

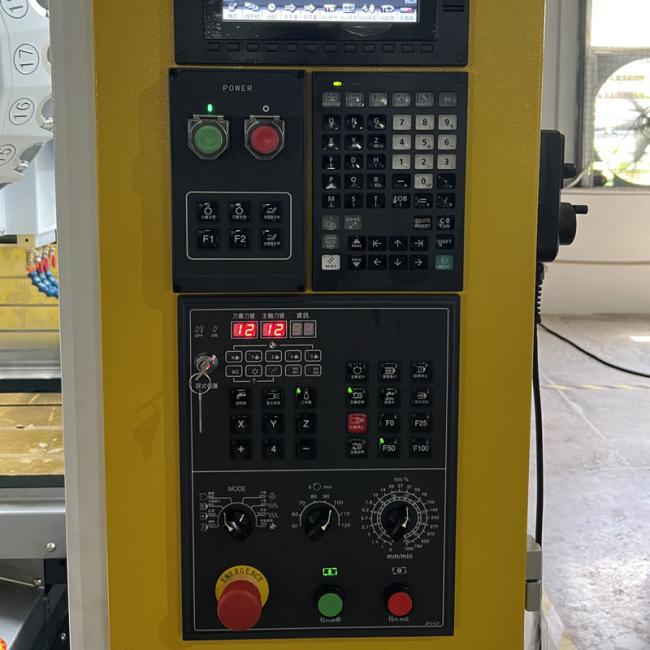

| CONTROL SYSTEM | Mitsubishi, Siemens, Fanuc | |
| SPINDLE BRAND | ROYAL, Taida, VYU CHENG | |
| BALLSCREW BRAND | Taiwan, Hiwin, PMI | |
| TOOL MAGAZINE BRAND | Taiwan | |
| HEAT EXCHANGER BRAND | Rucol | Rucol |
| MACHINE DIMENSION | mm | 1540*270*2500 |
| MACHINE WEIGHT | kg | 1500 |
Air source/pressure | kg/cm2 | 7 |
Standard Configuration for TV Series
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
Optional Configuration TV Series
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler
Product Details
