Multifunction Double Column Machining Center DY 2515 1500m/Min 35KVA
PRODUCT DESCRIPTION
DY-2515 High Precision Double Column Machining Center High Speed High Rigidity
The DY-2515 is a double column gantry machining center which features in high precision, speed and rigidity. The worktable size of this machine is 2700mm*1300mm, and the maximum load bearing capability is 8t. Large worktables and excellent load capacity make this machine a legacy choice for heavy work.
The machine has a heavy - duty box structure with reinforced internal ribs. Both the rigidity and the structure of the fuselage are excellent. All castings of the fuselage are made of excellent progressive materials with excellent rigidity and strength. Both stability and rigidity of this machine are excellent.
The spindle that equips in this machine is a high speed, precision and rigidity spindle. The speed range of this spindle is from 1 - 6000RPM. In addition to the speed of revolution, the rigidity of the spindle is also excellent. The spindle is made of material that can absorb vibration, which can avoid accuracy errors due to vibration, while maintaining high rigidity.
Main Technical Parameters
| ITEM | MODELS | DY2515 |
| WORKTABLE (WIDTH*LENGTH) | mm | 2700*1300 |
| MAX LOAD BEARING OF WORKTABLE | t | 8 |
| X/Y/Z AXIS TRAVEL | mm | 2500/1500/900 |
| DISTANCE FROM SPINDLE NOSE TOWORKBENCH | mm | 180-1080 |
| SPINDLE HOLE TAPER | TB50 | |
| SPINDLE SPEED RANGE | r/min | 6000 |
| TRANSMISSION OF SPINDLE BOX | BELT/DIRECT | |
| DISTANCE BETWEEN TOW COLUMNS | mm | 1500 |
| X/Y/Z RAPID FEED SPEED | m/min | |
| MAX CUTTING FEED SPEED | m/min | 10-7000 |
| X/Y/Z POSITION ACCURACY | mm | ±0.015/300 |
| X/Y/Z RE-POSITION ACCURACY | mm | ±0.01 |
| MACHINE DIMENSION | mm | 76320*4300*4600 |
| MACHINE WEIGHT | T | 25 |
| POWER DEMAND | KVA | 35 |
| AIR PRESSURE | m ³mim | 7 |
Standard Configuration for Gantry Series
1. Spindle temperature control system
2. Central automatic lubrication system
3. Fully sealed sheet metal
4. Cutting fluid system (with pump and tank)
5. Strong double - spiral iron chip roller
6. Chain type iron chip conveyor and collecting bucket
7. Foundation bolts and level adjusting screws
8. Adjusting tool
9. Warning lights
10. Blow air cleaning device
11. Automatic power failure system
Optional Configuration for Gantry Series
1. 8000/10000RPM Direct Driven Spindle
2. Handle and broach bolt: DIN50/CAT50/ISO50
3. Increase the height of the column by 200mm
4. 40 tools magazine tool
5. XYZ three axis optical ruler (HEIDENHAIN)
6. Spindle temperature rise heat compensation function
7. Oil circuit tool handle connection
8. Spindle center water outlet system
9. Automatic tool length measuring device
10. Automatic workpiece measuring device
11. CNC rotary worktable
12. Disc type oil-water separator
13. Spray cooling system

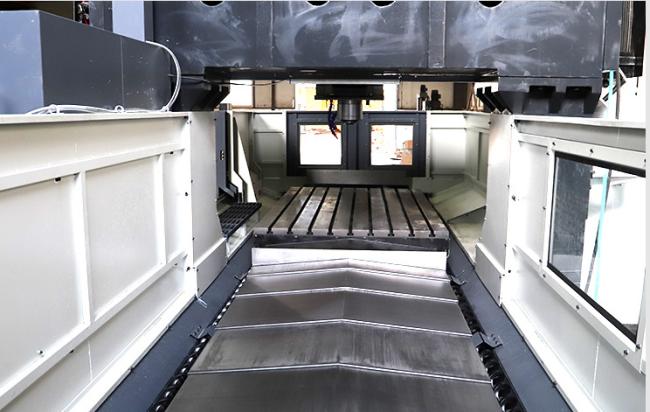

Product Details
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
