400 Ton Hdd Drill Rig Machines For 3300m Drilling Depth
Price:
USD70000-80000 per set
MOQ:
1 set
Delivery Time:
15-25days
Brand:
Glorytek
Product Description
400tons hdd Drilling Rig
Description
1.Equipped with Dong feng cummins engine, large power, stable performance,lower fuel consumption, lower noise, more suitable working in urban area.；
2.Rotation,push-pull pilot control, operation more portable.
3.Driving head adopts cycloid motor from Eaton, which drives rotation directly, with large torsion, stable performance, and two stall stepless speed regulation. Driving head push-pull adopts cycloid motor from Eaton,which has three stall speed and high construction speed of which leads far ahead in fellow competitors.There served reinforcement device increase construction scope.The hydraulic gear pump adopts military technique,track wire control operation, convenient and fast loading, unloading as well as construction site transition.
4.Operation table overview is broad,operation table design adopts human-computer construction way, comfortable operation, reduces fatigue strength.
5.Equipped with φ60×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.
6.Surface is with elegant appearance,easy maintenance, fully embody humanist designing idea.
Technical Date
| 1 | Driving head max. theoretical torsion N·m | 140000 | |
| 2 | Driving head max. theoretical push & pull force (KN) | 4000 | |
| 3 | Max. working pressure set in system (MPa) | 35 | |
| 4 | Max. flow in the hydraulic system(L/min) | 2215 | |
| 5 | Drill pipe diameter(inch) | From 5 to 6-5/8 | Petroleum standard drill pipe |
| 6 | Max. length of drill pipe(m) | 9.6 | |
| 7 | Driving head max. rotation speed(rpm) | 92 | |
| 8 | Driving head max. push & pull speed(m/min) | 40 | |
| 9 | Main spindle floating distance(mm) | 100 | |
| 10 | Mud pump channel diameter(cun) | 3 | |
| 11 | Max. mud flowing volume(L/min) | 2000 | |
| 12 | Max. mud pressure (MPa) | 12 | |
| 13 | Entry angle(°) | 9-16 | |
| 15 | Max. unscrewing force of pipe jaw(N·m) | 370000 | |
| 16 | Rig Size(Length×Width×Height (mm) | 18200×3000×3460 | Transportation condition |
| 17 | Rig weight(T) | About 60 | |
| 21 | Permitted working Temperature ℃ | -30~50 | |
| 22 | totalvolum of hydraulic oil tank (L) | 1660 | |
| 23 | totalvolum of diesel tank (L) | 2500 | |
| 24 | Permitted environment humidity ％ | ＞90 | |
| 25 | Permitted working altitude(m) | 0-2000 | |
| 26 | Referential back-reaming aperture (mm) | φ2000 | Soil depended |
| 27 | Referential drilling distance (m) | 3300 | Soil depended |

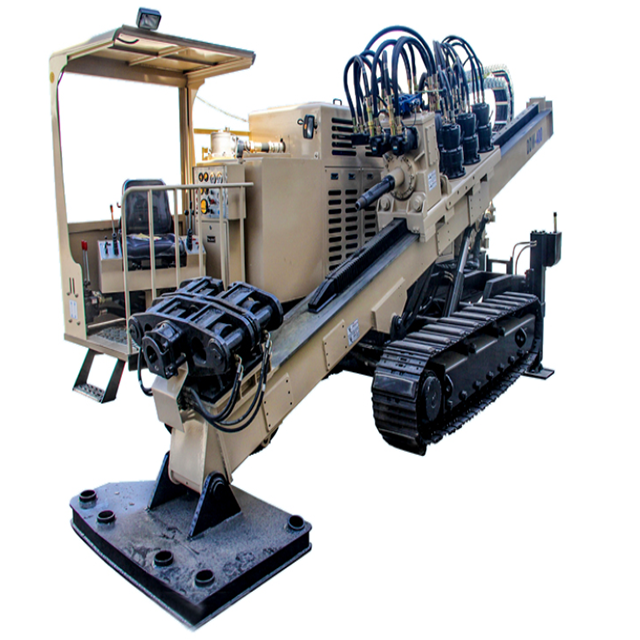

Product Picture
