Tube Production Line Round Square Pipe Making Machine Rectangular ERW Pipe Mill
Straight Seam High Frequency Welded Pipe Making Machine
Material: Hot/cold roll steel, galvanized steel, carbon steel
Tube Shape:Round tube, square tube, rectangular tube, special tube
Thickness: 0.4-12mm
Pipe size: round tube Φ8-Φ273mm

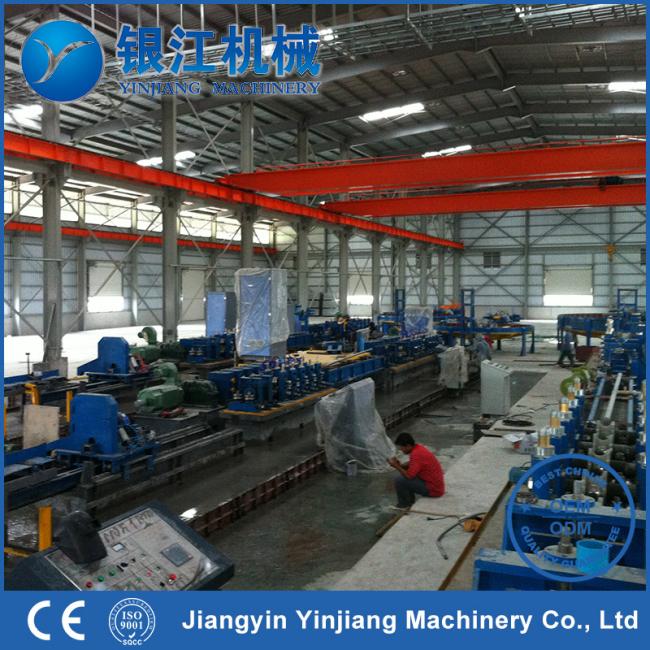

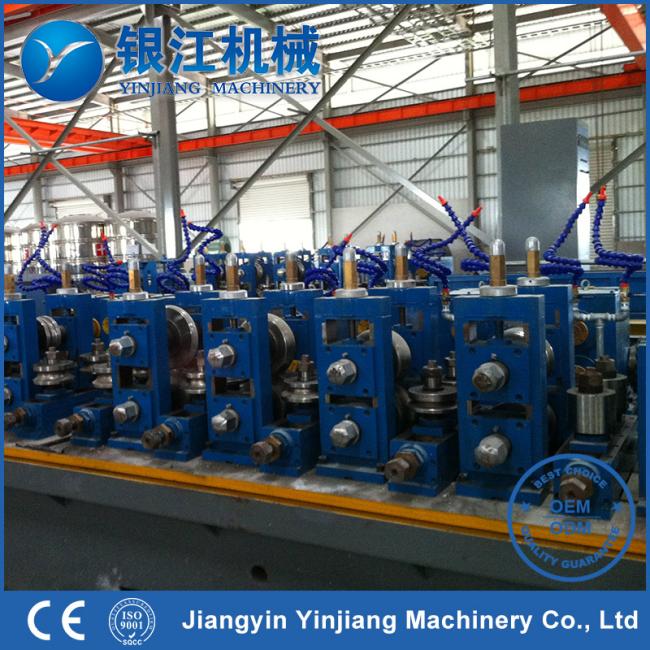

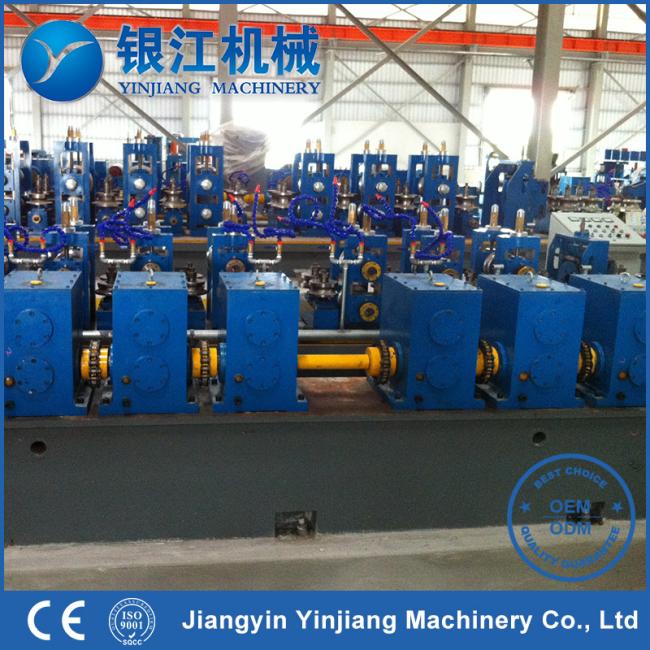

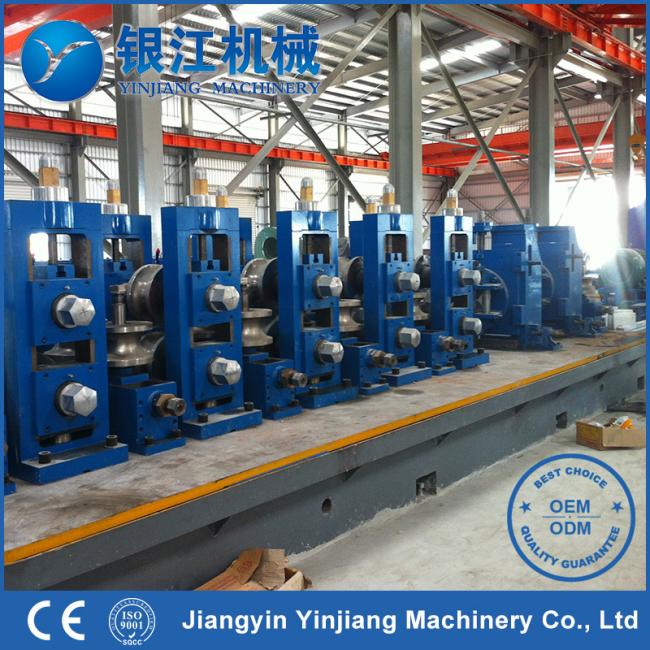

Working flow: hanging material→feeding→uncoiler→shear and butt welder→horizontal spiral accumulator→forming→high frequency welding→scraper→cooling →sizing→straightener→computer control flying saw→lay out table
The model and basic parameters
| Item Model | YJ-16 | YJ-20 | YJ-32 | YJ-50 | YJ-60 | YJ-76 | YJ-89 | YJ-114 | YJ-125 | YJ-165 |
| Diameter(mm) | 8-16 | 10-26 | 14-38 | 20-63.5 | 32-70 | 40-80 | 50-90 | 60-120 | 60-130 | 80-165 |
| Thickness(mm) | 0.3-1.0 | 0.5-1.5 | 0.6-1.8 | 0.8-3.0 | 1.0-3.0 | 1.0-3.5 | 1.5-4.0 | 2.0-5.0 | 1.5-5.5 | 2.0-6.0 |
| Speed(m/min) | 80-100 | 80-100 | 80-100 | 70-80 | 70-80 | 60-70 | 50-60 | 40-60 | 20-60 | 20-50 |
| Host motor power(Kw) | 22 | 37 | 75 | 132 | 55*2 | 132*2 | 90*2 | 110*2 | 220*2 | 220*2 |
| High-frequency equipment(Kw) | 60 | 60 | 100 | 200 | 250 | 250 | 250 | 300 | 300 | 400 |
| Equipment composition | Uncoiler, flattener, shearer welder, storing device, forming sizing unit, flying saw, discharging table,packer, high-frequency device |
|||||||||
| Remark | If you have any question, please contact us freely! |
|||||||||
Summary
This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.
A. Applicable material
1 Raw material: Low-carbon steel,
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs
B .Dimension range of processing steel pipe
1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ
C.Main components
1 Uncoiler: 1 set
2 Shearing and butt-welder: 1 set
3 Accumulator: 1 set
4 Forming. Welding &sizing unit: 1 set
5 Computer-controlled tracking cutting saw: 1 set
6 Run-out table: 1 set
7 Solid-state high-frequency welder: 1 set
Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team.Welcome to visit us.
Q:What kind o f payment term you can do?
A:We are flexible about payment terms,we can also help you on financing,please contact us for details.
Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings,material information,your special requirements.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this area for more than ten years,and especially our company’s YJ series spiral accumulator won a utility model patent certificate issued by intellectual property office (patent no:ZL200820132936.X).Our pipe making machine line directly export to Russia,Vietnam,India,Indonesia,and many countries in Asia.
