H26 H28 Punching Aluminum Sheet Coil , 1050 Antiwear Rolled Aluminium Sheet
Hardness H12 H18 H24 H26 H28 Alloy Aluminum Roll 1050 Aluminum Coil
Product Description
1050 aluminum sheet belongs to 1000 series aluminum alloy, which has better correction resistance than other alloy series. In the 1050 aluminum sheet, in addition to the component Al, 0.4% Fe is added, so 1050 aluminum alloy also has high conductivity.In general, 1050 aluminum sheet properties exhibit high plasticity, strong corrosion resistance, excellent electrical and thermal conductivity, but the strength of 1050 aluminum sheet is low.
1050 aluminum sheet is non-heat treatment series is produced in extruded sections. It has excellent cold workability, braze-ability and solder-ability, and it is strengthened by cold working. However, 1050 aluminum sheet has low mechanical strength compared to more significantly alloyed metals.

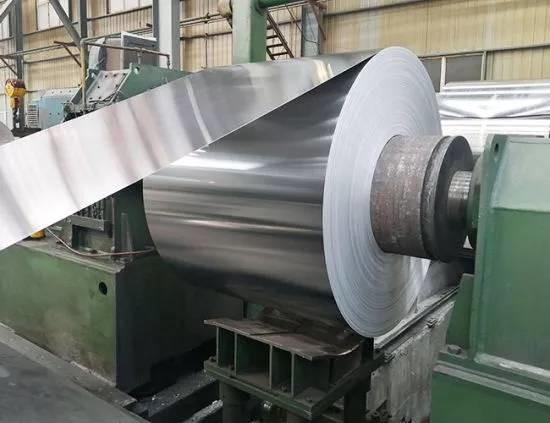

Product Display
| Temper | Specifications | Tensile Strength | Yield strength | Elongation |
| Thickness(mm) | (MPa) | (MPa) | (%) | |
| 1050-H12 | 0.2-0.5 | 85-125 | Min 65 | Min 2 |
| 0.5-1.5 | Min 4 | |||
| 1.5-3.0 | Min 5 | |||
| 3.0-6.0 | Min 7 | |||
| 6.0-12.5 | Min 9 | |||
| 12.5-40.0 | ||||
| 1050-H14 | 0.2-1.5 | 105-145 | Min 85 | Min 2 |
| 1.5-3.0 | Min 4 | |||
| 3.0-6.0 | Min 5 | |||
| 6.0-12.5 | Min 6 | |||
| 12.5-25 | ||||
| 1050-H16 | 0.2-0.5 | 120-160 | Min 100 | Min 1 |
| 0.5-1.5 | Min 2 | |||
| 1.5-4.0 | Min 3 | |||
| 1050-H18 | 0.2-0.5 | Min 135 | Min 120 | Min 1 |
| 0.5-1.5 | Min 140 | Min 2 | ||
| 1.5-3.0 | Min 2 | |||
| 1050-H19 | 0.2-0.5 | Min 155 | Min 140 | Min 1 |
| 0.5-1.5 | Min 150 | Min 130 | ||
| 1.5-3.0 | ||||
| 1050-H22 | 0.2-0.5 | 85-125 | Min 55 | Min 4 |
| 0.5-1.5 | Min 5 | |||
| 1.5-3.0 | Min 6 | |||
| 3.0-6.0 | Min 11 | |||
| 6.0-12.5 | Min 12 | |||
| 0.5-1.5 | ||||
| 1.5-3.0 | Min 3 |
Application
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines
FAQ
A: 95% of our Aluminum products export. We mainly sell to America, Canada, Australia, Japan, Russia, Germany, France, Dubai, Brazil, Chile,India, Thailand, South Africa, Egypt, Nigeria, etc.
A: Yes! Mill Test Certificate for both hot rolled raw material coils and cold rolled coils are available.
Q: How can I get the sample?
A: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL /FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q:How can I get your price list?
A: Please send us your email or fax and order information - Quantity, Specification (steel type,thickness, width, surface finish),
then I can send you the price list.
Q: Packing details?
A: We choose suitable package and reinforce for various steel products when loading and transport.
