AISI JIS GB 6063 Aluminium Perforated Plate Mesh Anti Abrasion Multipurpose
AISI JIS GB 6063 Alloy Aluminum Perforated Sheet For Facade Cladding
Product Description
|
Product name
|
Perforated sheet
|
|
Material
|
Aluminium
|
|
Thickness
|
0.3-18mm / Customized
|
|
Hole shape
|
Round, Square, Diamond,Rectangular,Hexagonal, etc.
|
|
Surface treatment
|
Hot-dipped galvanized, PVC coated, powder coating, anodization, etc.
|
|
Standard Sizes
|
1000 x 2000 mm/1220*2440mm/ Customized
|
|
Margin Types
|
Margins or no-margins(Jagged edge)
|
|
Chemical Composition |
|||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Aluminum | |
| Each | Total | ||||||||||
| 6063 | 0.6 | 0.35 | 0.1 | 0.9 | 0.1 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | Remainder |
|
Mechanical Properties |
||||||
| Temper | Hardness | |||||
| Ultimate Tensile Strength | Yield Strength | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T5, T52 | 27 | 186 | 21 | 145 | 12 | 60 |
| T6 | 35 | 241 | 31 | 214 | 12 | 73 |

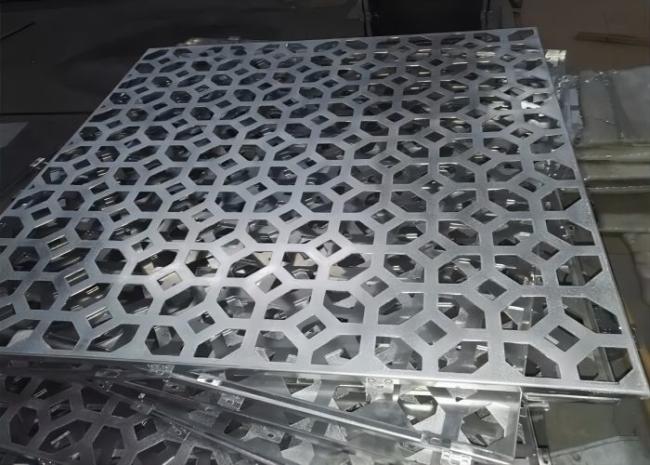

Product Display
6xxx series aluminum alloy combines the advantages of both 4 series and 5 series. It has high corrosion resistance, welding, anodizing quality. It is easy to be coated and performs well in heat tinting and machinability. 6063 is a low alloyed Al-Mg-Si alloy with high plasticity. It has excellent processing performance, excellent weldability, extrusion and electroplating, good corrosion resistance, toughness, easy to polish and color film, good anodizing effect, it is a typical extrusion alloy.
The process of creating perforations is called perforating, which involves puncturing the workpiece (usually a thin metal sheet) with a tool. Slotted perforated metal is a sheet or coil of material made from metal that contains holes punched by a die. Embossing is a metal forming process for producing raised or sunken designs or relief in sheet material. Checkered plate, also known as Diamond plate, is a type of light-weight metal sheet with a regular pattern of raised diamonds or lines.
Application
6063 aluminum alloy is widely used as frames for architectural aluminum doors, windows, curtain walls. To make sure the doors, windows, curtain walls have high wind pressure resistance, assembly performance, corrosion resistance, decorative performance, the comprehensive performance requirements for aluminum alloy profiles garden apartment industrial profile standards, fences, furniture, building extrusions, truck trailer platform, doors and windows, irrigation shape round tube.
