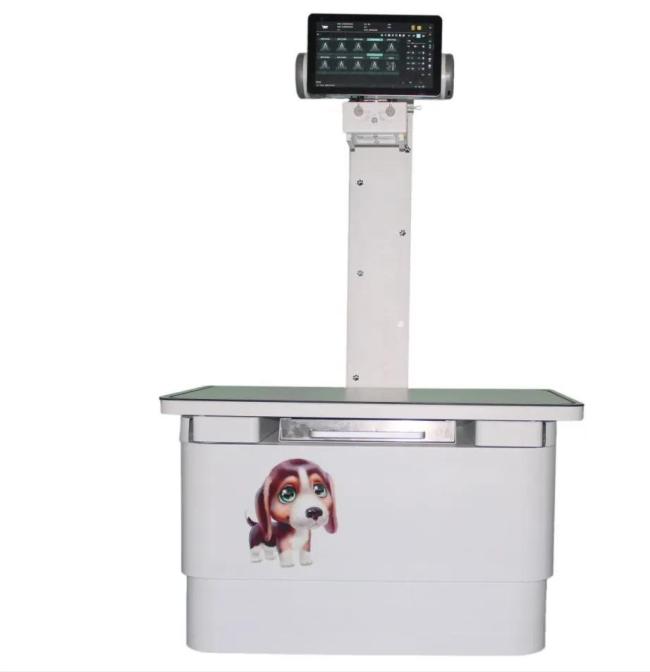

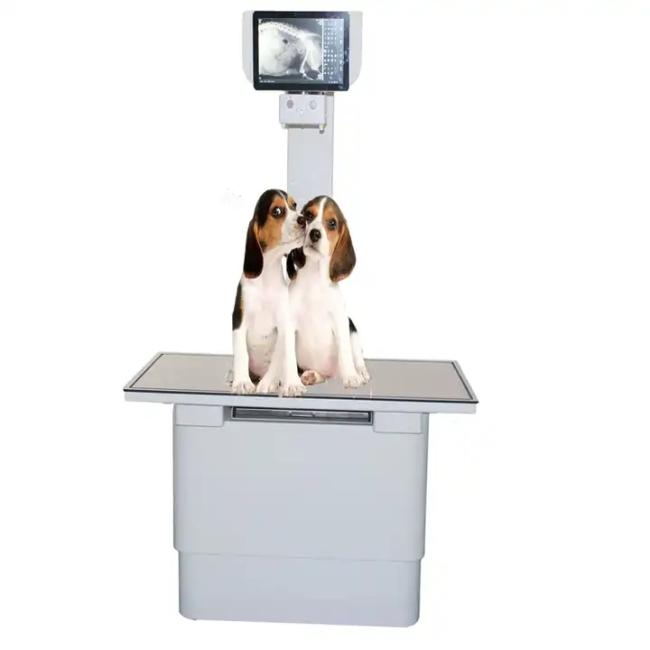

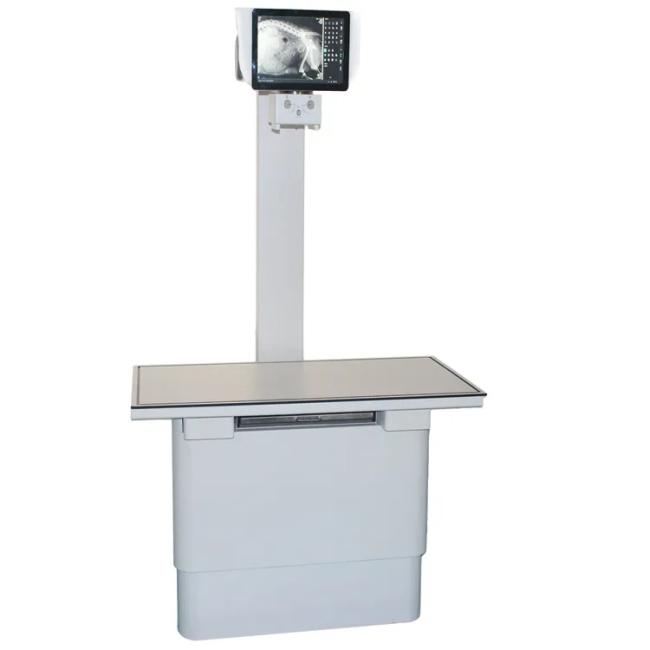

32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine
Price:
$29900-16000/sets 1-99 sets
MOQ:
1 pieces
Delivery Time:
3-15 work days
Brand:
guanxiong
Product Description
Hot selling animal radiology equipment veterinary xray system x-ray machine dr
| Power voltage | 1-phase 220VAC ±10%,50Hz,16A；3-phase 380VAC±10% |
| Maximum Working Frequency | ≥30KHz |
| Nominal Electric Power | 20kw(@100kv,200mA,100ms) |
| KV range | 40-125KV |
| mA range | 10-320mA |
| mAs range | 0.1-400mAs |
| Photoformy time | 3ms-6300ms |
X ray machine parameter:
Working voltage:40KV-125KV Maximum power (0.1 S): Small focus 20 kw, Large focus 40 kW Nominal value :Large focus 1.2,Small focus 0.6 Maximum heating filament characteristics :5.3A Anode speed (50HZ) :2800rpm Anode angle :12° Inherent filtering: 1.0mmAL/75kV Anode Heat Content: 110KJ(150KHU) Tube component heat capacity: 900KJ(1300KHU)
Flat panel detector parameter:
Flat Panel Detectors Detector Technology : a-Si Scintillator: CsI Image Size: 35×43 cm Pixel Matrix: 2560×3072 (14×17 in) Pixel Pitch: 140 μm A/D Conversion: 16 bit Minimum Detectable Dose: 14 nGy Maximum Linear Dose (RQA5): 110 μGy Spatial Resolution: 3.6 LP/mm Data Interface: GigE /802.11ac Power Dissipation: 20 W Adapter Input: AC 100-240V,50-60Hz Dimensions: 38×46×1.5 cm weight:3.3kgwireles/2.9kg wired
Analogue x ray machine accessories:
![]()
1. x ray machine with tube and table 1pcs
2. generator 1pcs
Wired DR x ray machine accessries:
1. x ray machine with tube and table 1pcs
2. generator 1pcs
2. generator 1pcs
3. wired flat panel detector 1pcs
4. software 1pcs
5. laptop 1pcs
