51.2V Battery Lithium Ion Battery Lifepo4 Battery Lifepo4 Prismatic Cells Solar Energy Storage
Product Description:
Household Energy Storage System

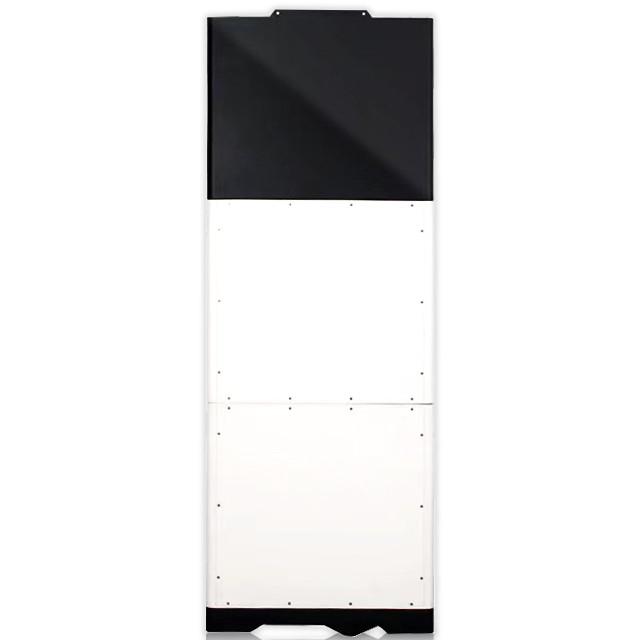

The 51.2V Battery is a cutting-edge lithium-ion battery system designed for homeuse energy storage. The 12v lithium-ion batteries are composed of lifepo4 cells, delivering a maximum power of 10.24kWh for a wide range of applications. The maximum PV charge current is 80A for excellent performance. The battery is designed for long-term use, with an operating temperature of -20℃~55℃ (discharge) and 0℃~55℃ (charge). To ensure reliable and efficient operation, the battery is equipped with an internal fan for cooling.
Features:
- Product Name: 51.2V Battery
- Application: Homeuse Energy Storage System
- AC rated output power: 5000W
- Maximum PV input power: 5200W
- Battery voltage range: 40V~58.4V
- Maximum PV charge current: 80A
- Lifepo4 battery: High efficiency and high energy density
- Solar panel battery storage: Low self-discharge rate and long cycle life
- Solar battery lifepo4: Environmental friendly and safe
Technical Parameters:
| Parameter | Details |
|---|---|
| Battery Voltage Range | 40V~58.4V |
| Maximum PV Input Power | 5200W |
| Weight | 135kg±5kg |
| Cooling Mode | Internal Fan |
| Battery DC Protection | 2P Circuit Breaker |
| System Energy | 10.24kWh |
| PV Working Voltage Range | 120V~500Vdc |
| MPPT Voltage Range | 120V~450V |
| Maximum PV Open Circuit Voltage | 500Vdc |
| Working Temperature | -20℃~55℃(Discharge) 0℃~55℃(Charge) |
| Battery Type | Lithium Ion Rechargeable Battery |
| Solar Battery Storage | Solar Panel Battery Storage |
| Home Solar Battery Storage | Yes |
Applications:
Support and Services:
Technical support and service for 51.2V Battery are available.
We provide professional support for our products, including:
- Technical advice
- Troubleshooting
- Firmware updates
- Replacement parts
For more information, please contact us.
FAQ:
A1: The brand name of the 51.2V Battery is ANC.
A2: The model number of the 51.2V Battery is 51.2V 10.24kWh.
A3: The 51.2V Battery is manufactured in Shangrao Jiangxi, China.
A4: The 51.2V Battery has IEC62619, UL1973, UN38.3, and ROHS certifications.
A5: Up to 10000 sets of the 51.2V Battery can be supplied each month.
