DT1300-6SY Brush Sanding Machine Wood Brush Sander With Two Sides Sandpaper DTW Manufacturer
DTW Wood Sadnding Machine DT1300-6SY with Two-sides Sandpaper for Wood Surface Finishing
DTW Wood Sanding Machine DT1300-6SY Description
DT1300-6SY brush sanding machine is designed for most difficult raw and primer surfaces
like carved surfaces by CNC router, flat surface furniture and cabinet door with raw or primer.
DT1300-6SY brush sanding machine is suitable for the sanding or grinding of doors, cabinet, plywood,
MDF and other panel furniture and solid wood furniture. It is widely applied to the surface with primer,
PE, PU, UV coating etc.
DTW Wood Sanding Machine DT1300-6SY Specifications
| Max Working Width | 1300mm | |
| Max Working Thickness | 8-160mm | |
| Min Working Length | ≥430mm | |
| Roller Speed | Inverter Control | |
| Conveyor Speed | 5-20m/min | |
| Long Roller Motor | 1.5KW×2 | |
| Conveyor Motor | 1.5KW | |
| Lifting Motor | 0.55KW | |
| Disc Motor | 1.5KW | |
| Disc Swing Motor | 0.55KW | |
| Small Roller Motor | 1.5KW*2 | |
| Small Roller Swing Motor | 0.55KW | |
| Total Power | 11.20KW | |
| N. W. | 2400KG | |
| Packing Dimension | 3200*2100*1750mm | |
| Using Dimension | 3750*2100*2120mm | |
Different Brush Roller Layout of DT1300-6SY for Choice

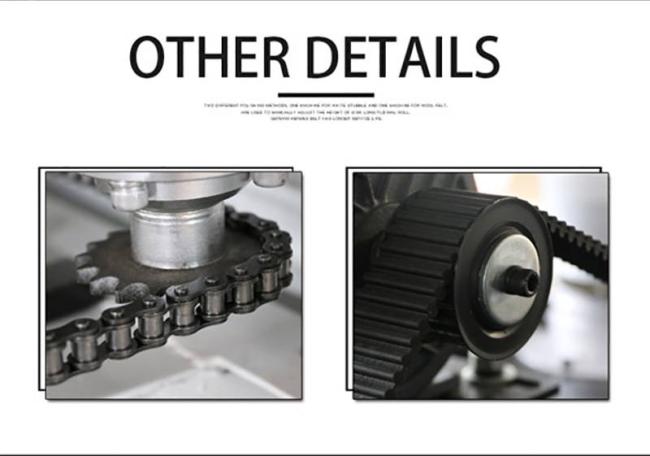

Brush Sanding Machine DT1300-6SY More Details
1. Two rows of cross sanding rollers (5+4 pieces rollers)
2. Two rows of Disc Sanding Rollers (5+4 pieces rollers)
3.Two rows of long rollers
What Materials can be Sanded by the Wood Sanding Machine DT1300-6SY ?
