DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
Price:
Negotiable
MOQ:
100kg. We also can accept sample order.
Delivery Time:
Fast delievery in7-10 days,up to order quantity
Brand:
CJ
Product Description
DIN 2507 Stainless Steel Strip Spring 19mm Flat Used In Food Vessel
You'll find strip steel used in appliances like refrigerators, washers, and dryers. The unique properties of strip steel have also made it a popular material for building and construction materials.
Product Name stainless steel strip
| Material | Surface Treatment | Thickness | width |
| 201 | BA | 0.15-0.8mm | 10-800mm |
| 202 | BA | 0.15-0.8mm | 10-800mm |
| 304 | BA | 0.025-0.8mm | 10-800mm |
| 304 | CSP(1/2H,3/4H,H) | 0.08-1.0mm | 10-690mm |
| 301 | CSP(1/2H,3/4H,H,EH) | 0.08-1.0mm | 10-690mm |
| 309S | 2B | 0.08-2.0 | 10-690mm |
| 310S | 2B | 0.08-2.0 | 10-690mm |
| 430 | BA | 0.15-0.8mm | 10-800mm |
| 430 | 1D | 0.15-0.8mm | 10-690mm |
| 430 | 2D | 0.15-0.8mm | 10-690mm |
| 430 | H | 0.08-1.0mm | 10-690mm |
| 409 | HD | 0.15-0.8mm | 10-690mm |
2.Chemical composition and mechanical
200 series:
| level | Chemical composition | Mechanical properties | |||||||||||
| C | Si | Mn | P | S | Ni | Cr | N | Cu | Y.S | T.S. | ELOG. | HRB | |
| % | % | % | % | % | % | % | % | % | N/mm2 | N/mm2 | % | ||
| 201(1% Nickel) | ≤ 0.15 | ≤ 1.00 | 8~11 | ≤ 0.060 | ≤ 0.030 | 0.9~1.5 | 15~17 | ≤ 0.25 | 1.5~2 | ≥ 310 | ≥ 655 | ≥ 35 | ≤ 105 |
| 202(4% Nickel) | ≤ 0.15 | ≤ 1.00 | 6~9 | ≤ 0.060 | ≤ 0.030 | 3.5~5 | 15~17 | ≤ 0.25 | 1.5~2 | ≥ 260 | ≥ 620 | ≥ 40 | ≤ 100 |
300 series:
| level | Chemical composition | Mechanical properties | ||||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Y.S | T.S. | ELOG. | HRB | |
| % | % | % | % | % | % | % | % | N/mm2 | N/mm2 | % | ||
| 304 | ≤ 0.08 | ≤ 0.75 | ≤ 2 | ≤ 0.045 | ≤ 0.03 | 8~10 | 18~20 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 90 | |
| 301 | ≤ 0.15 | ≤ 1.00 | ≤ 2 | ≤ 0.045 | ≤ 0.03 | 6~8 | 16~18 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 95 | |
| 316 | ≤ 0.08 | ≤ 1.00 | ≤ 2 | ≤ 0.045 | ≤ 0.03 | 10~14 | 16~18 | 2~3 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 90 |
| 316L | ≤ 0.03 | ≤ 1.00 | ≤ 2 | ≤ 0.045 | ≤ 0.03 | 12~15 | 16~18 | 2~3 | ≥ 170 | ≥ 480 | ≥ 40 | ≤ 95 |
400 series:
| level | Chemical composition | Mechanical properties | |||||||||||
| C | Si | Mn | P | S | Ni | Cr | N | Cu | Y.S | T.S. | ELOG. | HRB | |
| % | % | % | % | % | % | % | % | % | N/mm2 | N/mm2 | % | ||
| 430 | ≤ 0.12 | ≤ 1.00 | ≤ 1 | ≤ 0.040 | ≤ 0.030 | 16~18 | ≥ 450 | ≥ 205 | ≥ 22 | ≤ 88 | |||

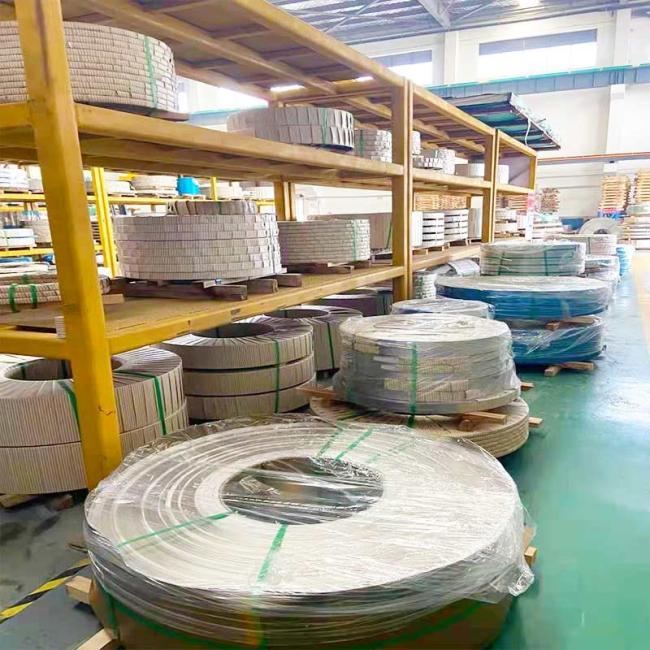

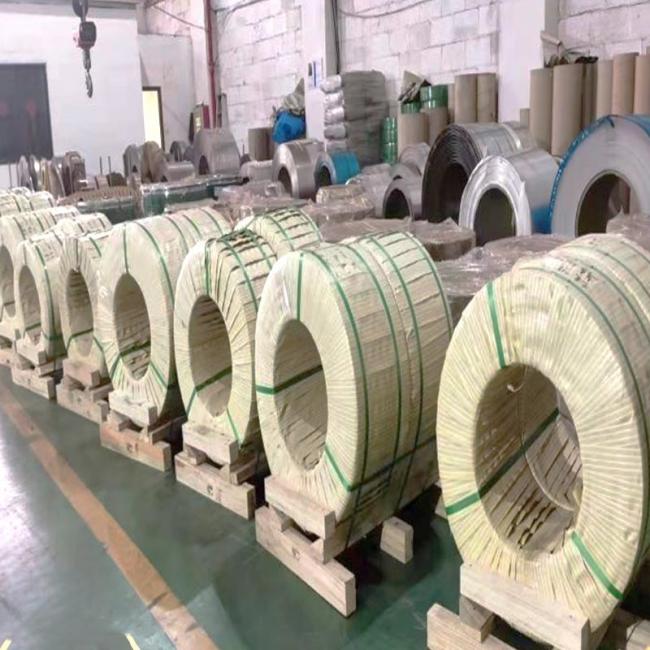

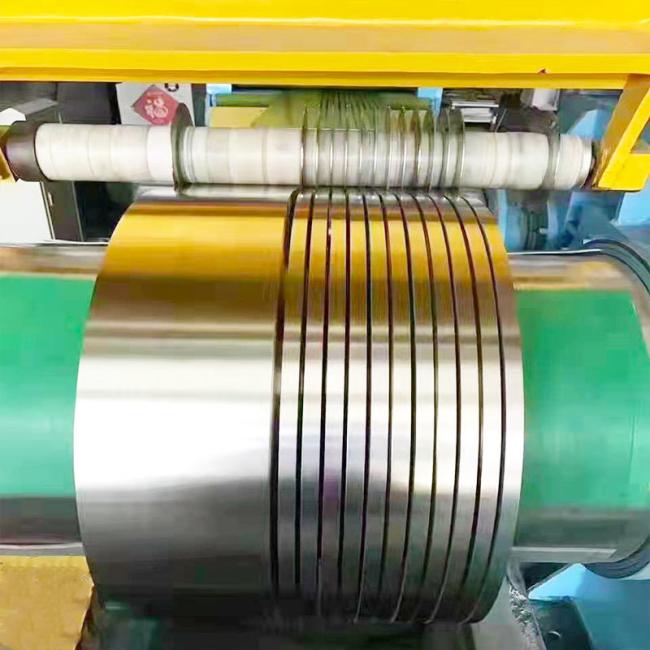

3.Product Show
