14mm Stainless Steel Angle
Price:
bargaining
MOQ:
100kg. We also can accept sample order.
Delivery Time:
Within 15-30 workdays after receiving deposit or L/C
Brand:
Chengjiu
Product Description
304 Stainless Steel Angle Steel Equilateral Angle Steel
High Quality Stainless Steel Angle Measured 304 316 Using For Structure Building Construction For Sale
Stainless steel Angle steel can be composed of different stress components according to the different needs of the structure, but also can be used as a connection between components. Widely used in a variety of building structures and engineering structures, such as beams, Bridges, transmission towers, lifting and transport machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.
2.Chemical composition and mechanical
| Chemical composition | ||||||||
| Material | C | Si | Mn | Cr | Ni | S | P | N |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤18.0-20.0 | ≤8.0-10.5 | ≤0.030 | ≤0.035 | ≤0.1 |
Mechanical properties of 304 stainless steel Angle steel
Mechanical properties of 304 stainless steel Angle steel yield strength (N/ MUM2)≥205
Mechanical properties of 304 stainless steel Angle steel tensile strength ≥520
304 stainless steel Angle steel mechanical properties elongation (%) ≥40
Angle steel mechanical properties of 304 stainless steel hardness HB≤187 HRB≤90 HV ≤200
Stainless steel Angle steel specification list
| Angle of the side | thickness (mm) | ||||||
| A×Bmm | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 20×20 | 0.894 | 1.13 | 1.38 | ||||
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | |||
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | |||
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | |||
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | |||
| 45×45 | 2.12 | 2.76 | 3.4 | 4 | |||
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 |
| 60×60 | 4.58 | 5.42 | 6.24 | 7.03 | |||
| 63×63 | 5.03 | 5.95 | 6.84 | 7.71 | 8.6 | ||
| 70×70 | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | ||
| 75×75 | 5.82 | 6.89 | 7.95 | 8.97 | 10 | ||
| 80×80 | 7.37 | 8.5 | 9.61 | 10.7 | |||
| 90×90 | 8.33 | 9.65 | 11.9 | 12.2 | |||
| 100×100 | 9.28 | 10.8 | 12.2 | 13.6 | |||

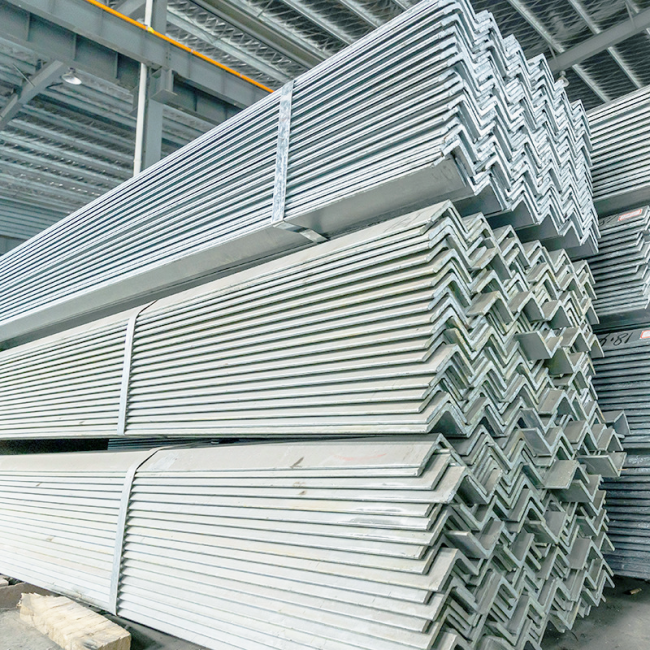

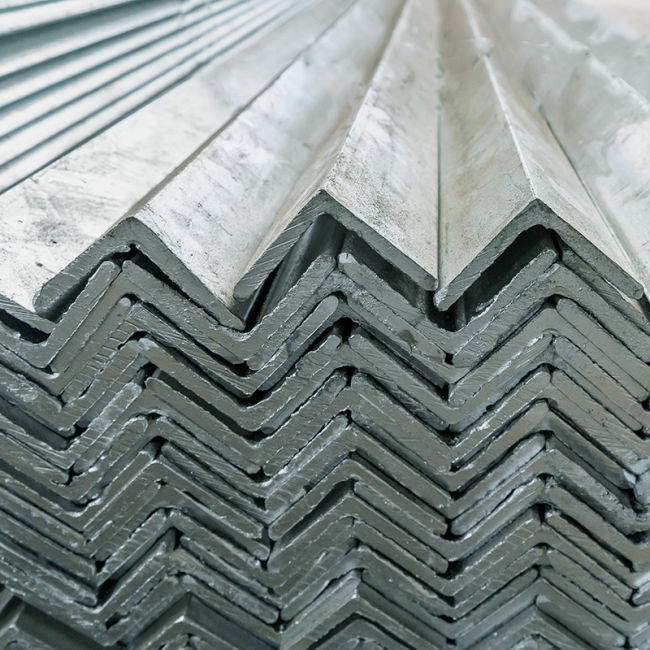

3.Product show
