Polishing Forged Shaft 4340 Stainless Steel Square Rod Cold Drawn
Polishing Forged Shaft 4340 Stainless Steel Square Rod Cold Drawn
1. 4340 Steel Introduction
AISI 4340 steel is a medium carbon, low alloy steel known for its toughness and strength in relatively large sections. AISI 4340 is also one kind of nickel chromium molybdenum steels. 4340 alloy steel is generally supplied hardened and tempered in the tensile range of 930 - 1080 Mpa. Pre hardened and tempered 4340 steels can be further surface hardened by flame or induction hardening and by nitriding. The 4340 steel has good shock and impact resistance as well as wear and abrasion resistance in the hardened condition. AISI 4340 steel properties offer good ductility in the annealed condition, allowing it to be bent or formed. Fusion and resistance welding is also possible with our 4340 alloy steel. AISI 4340 material is often utilized where other alloy steels do not have the hardenability to give the strength required. For highly stressed parts it is excellent choice. AISI 4340 alloy steel can also be machined by all customary methods.
2. 4340 Steel Equivalent
| Country | Japan | Germany | Britain | USA |
| Standard | JIS G4103 | EN10250 | BS970 | ASTM A29 |
| Grade | SNCM439 | 36CrNiMo4/1.6511 | EN24/817M40 | 4340 |
3. 4340 Steel Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 4340 | 0.38-0.43 | 0.15-0.35 | 0.6-0.8 | 0.035 | 0.04 | 0.7-09 | 0.2-0.3 | 1.65-2.0 |
| 36CrNiMo4 | 0.32-0.4 | 0.4 | 0.5-0.8 | 0.035 | 0.035 | 0.9-1.2 | 0.15-0.3 | |
| EN24 | 0.36-0.44 | 0.1-0.4 | 0.45-0.7 | 0.035 | 0.04 | 1.0-1.4 | 0.2-0.35 | 1.3-1.7 |
| SNCM439 | 0.36-0.43 | 0.15-0.35 | 0.6-0.9 | 0.03 | 0.03 | 0.6-1.0 | 0.15-0.3 | 1.6-2.0 |
4. 4340 Steel Available Sizes
| Cold Draw Square Bar | |||||||
| Size (mm) |
Length (m) |
Size (mm) |
Length (m) |
Size (mm) |
Length (m) |
Size (mm) |
Length (m) |
5x5 |
Max 12 | 12x12 | Max 12 | 30x30 | Max 12 | 50x50 | Max 12 |
6x6 |
Max 12 | 15x15 | Max 12 | 35x35 | Max 12 | 55x55 | Max 12 |
8x8 |
Max 12 | 20x20 | Max 12 | 40x40 | Max 12 | 60x60 | Max 12 |
10x10 |
Max 12 | 25x25 | Max 12 | 45x45 | Max 12 | ||

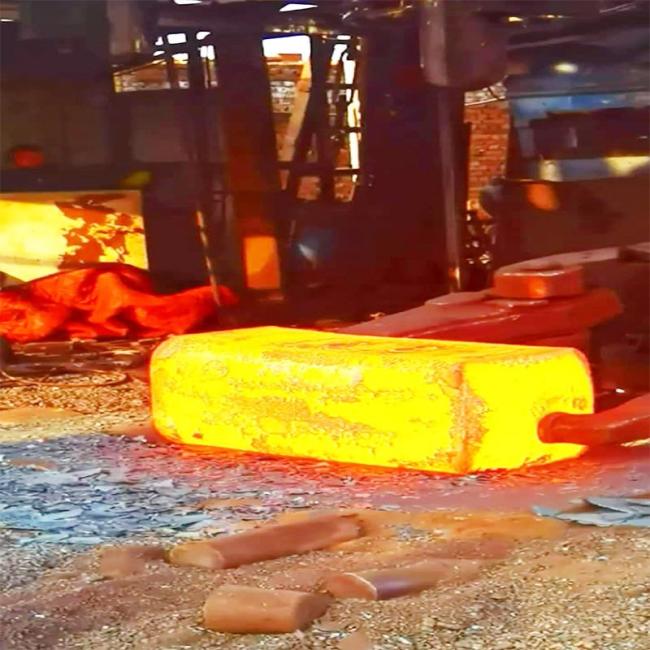

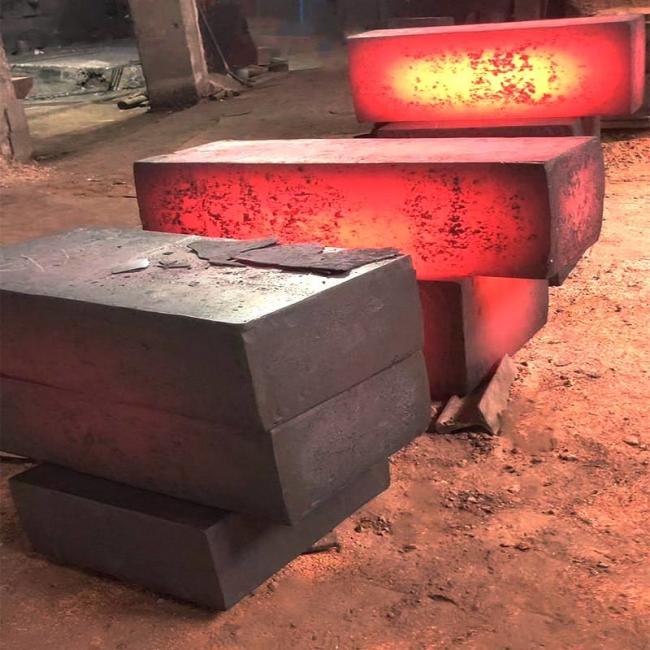

3. Product show
