En 10084 16CrMnH 16mncr5 Round Bar Steel En Din 1.7131 1/2 X 36 6mm Round Steel Rod
Gear Bright Round Steel Hot Rolled / Bright High Hardness 16CrMnH 16MnCr5
16MnCr5 is an alloyed
16MnCr5 steel are alloyed case hardening engineering steels for parts which require core tensile strength of 800 – 1100 N/mm² and good wearing resistance. It is an engineering material typically used to manufacture piston bolts, camshafts, levers and other vehicle and mechanical engineering components.

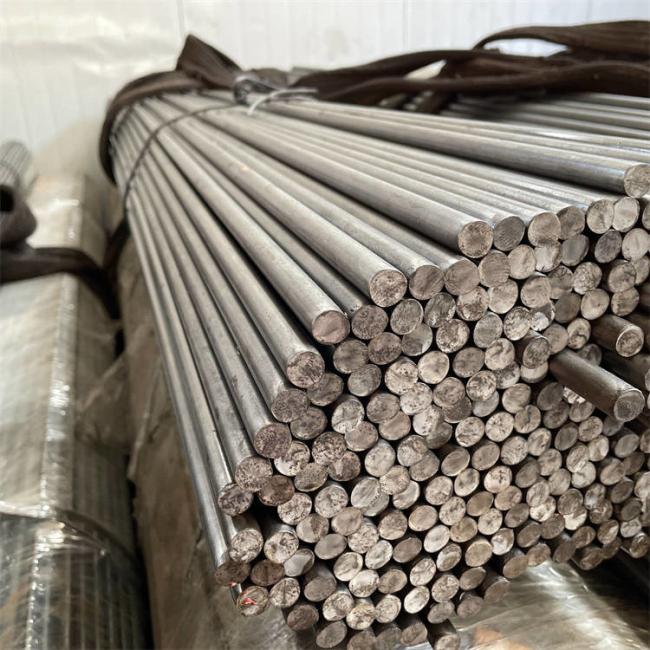

Supply Form & Size
| Form of Supply | Size(mm) | Length(mm) |
| Round bar | 6.0mm-1200mm | 2.5m-10m |
Chemical Composition&Related Specifications
| Grade | C | Si | Mn | S | P | Cr |
| 16MnCr5 | 0.14～0.19 | ≤0.40 | 1.00～1.30 | 0.010～0.035 | ≤0.035 | 0.80～1.10 |
Brand comparison table
| AISI/SAE | DIN/EN | BS | JIS/KS | China |
| / | 16MnCr5(1.7131) | 16MnCr5(1.7131) | / | 16CrMnH |
Mechanical Property
|
tensile strength σb (MPa) |
1373 |
| yield strength σs (MPa | 1187 |
| elongation δ5 (%) | 13 |
| reduction of areaψ (%) | 57 |
|
Impact energy Akv (J) |
72 |
| hardnes | ≤297HB |
