200 Gpd Ro Membrane System 150 Gpd Reverse Osmosis Membrane
2012-200 Gpd Reverse Osmosis RO Membrane for Domestic Water Filter Replacement
This standard specifies product specifications for reverse osmosis membrane elements for household and similar purposes (here in after referred to as reverse osmosis elements) .This standard applicable to reverse osmosis membrane elements that use municipal tap water or centralized water supply as raw water for use in homes and similar places.
Performance
| model | Stable rejection rate(%) | average permeate flowGPD(m3/d) | test condition | ||
| operation pressure psi(Mpa) | test liquid NaCl(ppm) | recovery rate (%) | |||
| 1812-BW50 | 97 | 50(0.19) | 60(0.41) | 250 | 15 |
| 1812-BW75 | 97 | 75(0.28) | 60(0.41) | 250 | 15 |
| 1812-BW100 | 97 | 100(0.38) | 60(0.41) | 250 | 15 |
| 2012-150 | 95 | 150(0.57) | 70(0.5) | 500 | 15 |
| 2012-200 | 95 | 200(0.76) | 70(0.5) | 500 | 15 |
Membrane Dimention
| Model No. | A(Inch/mm) | B(Inch/mm) | C(Inch/mm) | D(Inch/mm) | E(Inch/mm) |
| BW-1812-50 | 11.74/298 | 1.70/44 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-75 | 11.74/298 | 1.75/45.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-100 | 11.74/298 | 1.8/46.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-200 | 11.74/298 | 1.9/48 | 0.68/17 | 0.87/22 | 10.0/254 |
1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
2. Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.

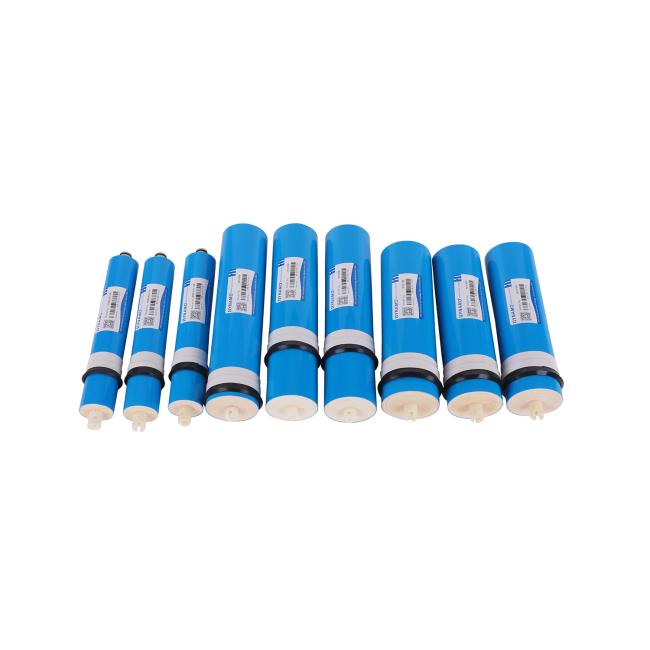

Domestic RO membrane elements are spiral wound, composite polyamide membrane elements for Tap Water and Well Water treatment in low salinity application. These membranes are characterized by a very low operating feed pressure, normally is from 65psi(0.45MPa) and result in higher salt rejection rate, above 96%. These membranes are designed for domestic/commercial water treatment applications, such as the treatment of low salinity waters for home, residence, hospital, laboratory, shop, store,......
FAQ:
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
