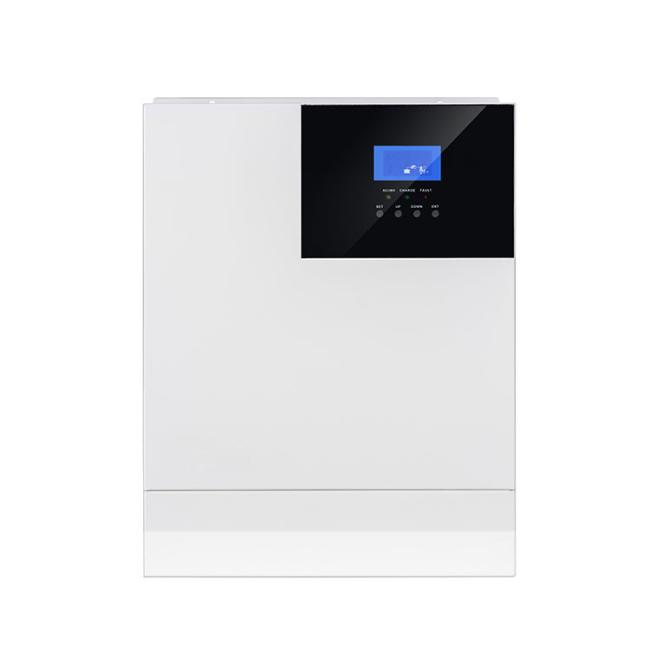

HFP4850S80-H is a high-performance solar inverter designed to meet the needs of residential and commercial photovoltaic (PV) systems. With its advanced technology, flexible design, and user-friendly interface, this inverter provides a reliable and efficient solution for harnessing the power of the sun.
Home Storage Battery And Solar Inverter Parameters
| Model | HFP4850S80-H |
| Battery Input | |
| Battery type | Sealed,Flood,GEL,LFP,Ternary |
| Rated Battery Input Voltage | 48V(Minimum Startup Voltage 44V) |
| Hybrid Charging Maximum Charing Current | 80A |
| Battery Voltage Range | 40Vdc~60Vdc±0.6Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage Warning/Overvoltage Recovery...) |
| Solar Input | |
| Maximum PV Open-Circuit Voltage | 500Vdc |
| PV Working Voltage Range | 120-500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| Maximum PV Input Current | 22A |
| Maximum PV Input Power | 5500W |
| Maximum PV Charging Current | 80A |
| AC Input(generator/grid) | |
| Mains Maximum Charging Current | 60A |
| Rated Input Voltage | 220/230Vac |
| Input Voltage Range | UPS Mains Mode:(170Vac~280Vac)±2%
APL Generator Mode:(90Vac~280Vac)±2%
|
| Frequency | 50Hz/60Hz(Automatic Detection) |
| Mains Charing Efficiency | >95% |
| Switch Time(bypass and inverter) | 10ms(Typical Value) |
| Maximum Bypass Overload Current | 40A |
| AC Output | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage(Vac) | 230Vac(200/208/220/240Vac) |
| Rated Output Power(VA) | 5000(4350/4500/4750/5000) |
| Rated Output Power(W) | 5000(4350/4500/4750/5000) |
| Peak Power | 10000VA |
| On-load Motor Capacity | 4HP |
| Output Frequency Range(HZ) | 50Hz±0.3Hz/60Hz±0.3Hz |
| Maximum Efficiency | >92% |
| No-load Loss | Non Energy-saving Mode:≤50W Energy-saving Mode:≤25W(Manual Setup) |
| General | |
| Number of parallel/split phases | 1-6PCS |
| Certificate | CE(IEC62109-1)/CETL(UL 1741 C22.2 NO.107.1) |
| EMC Certification Level | EN61000,C2 |
| Working Temperature Range | -10℃~55℃ |
| Storage Temperature Range | -25℃~60℃ |
| Humidity Range | 5% to 95%(Conformal Coating Protection) |
| Dimensions | 426mm*322mm*124mm |

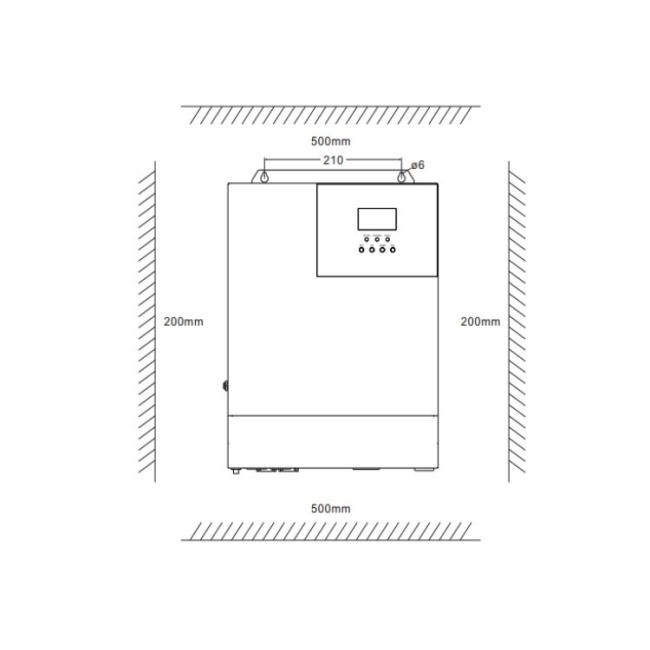

Solar Inverter Size
Characteristics:
1. Adopt full digital voltage and current double closed-loop control and advancedSPWM technology to output pure sine wave.
2. Two output modes, i.e. mains bypass and inverter output can achieveuninterrupted power supply function.
3. Four optional charge modes: only solar energy, mains priority, solar energypriority and mixed charge.
4. Advanced MPPT technology, with efficiency up to 99.9%.
5. Wide MPPT voltage range.
6. With function of activating lithium batterywith solar energy and AC mainspower, it supports connection of lead-acid battery and lithium battery.
7. LCD screen design and 3 LED indicator lights dynamically display systemdata and operation states.
8.ON/OFF rocker switch can control AC output.
9.With power saving mode function, it can reduce no-load loss.
10.Intelligent adjustable speed fan is adopted forefficient heat dissipation andextended system life.
11.Possessing multiple protection functions and 360°comprehensiveprotection.
12.Possessing complete short circuit protection, overvoltage and undervoltageprotection, overload protection, back filling protection, etc.
13.It has the function of mixed load: when the battery is not connected,photovoltaic and commercial power can supply power to the load at the same time(if there is no battery, the commercial power must be connected). When the batteryis full, it can also enter the mixed load mode, which can make full use of the photovoltaic energy.
Q: What is a solar inverter?
generated by solar panels into alternating current (AC) electricity, which can be used by homes and businesses.
microinverters. String inverters are connected to multiple solar panels and convert the combined DC output into AC. Microinverters are connected to individual solar panels and convert the DC output from each panel into AC.
AC electricity using electronic circuitry. This AC electricity can then be used by homes and businesses, or fed back into the
grid.
electrical grid and sends excess energy back to the grid when the solar panels produce more energy than is being used. An off-grid solar inverter is not connected to the electrical grid and must store excess energy in batteries for later use.
-Increased energy efficiency: By converting DC to AC, solar inverters increase the efficiency of the solar panels and allow for more energy to be generated and used.
-Improved safety: Solar inverters are designed to ensure that the electricity generated by the solar panels is safe for homes and businesses to use.
-Monitoring capabilities: Many solar inverters come equipped with monitoring capabilities, allowing homeowners to track theirenergy production and usage.
Q: What should I look for when choosing a solar inverter?
-Compatibility with your solar panel system
-Efficiency and reliability of the inverter
-Monitoring capabilities
-Warranty and customer support
-Cost and budget.
