Single Tube Ultra Fine Powder Grinding Machine Double Rotary Drum Dryer 2.2kw

Rotary Drum Dryer , Double Drum Dryer , Single Tube

  Products Descriptions

      HG drum dryer is an internal heating conduction type rotary continuous drying equipment. The rotating drum passes through its lower trough and adheres to a thick material film, and the heat is transported to the inner wall of the drum through the pipeline, conducted to the outer wall of the drum, and then conducted to the feeding film, so that the moisture in the material film is evaporated, dehumidified, and made The moisture-containing material is dried. The dried materials are shoveled away from the drum by the scraper installed on the surface of the drum to the screw conveyor under the scraper, and the dry materials are concentrated and packaged by the screw conveyor.

  Products Principle

      HG rotary drum dryer is a kind of indirect heating dryer in continuous production. Raw material fed from top or bottom of drum and stick on the drum. Filling steam or thermal oil inside the drum, the heat then transferred to raw material, thus raw material could get dried. Flake form dried product will be scraped off, and preliminarily crushed as well as transported by screw conveyor.

Evaporated moisture will be sucked out by exhausting fan.

The dryer is suitable for liquid or paste form raw material with certain viscosity.

  Products Features

      (1) High efficiency. Almost all of the heat could be used on drying, drying efficiency could reach 80-90%.

      (2) Widely used. The dryer is available for drying the raw material with large moisture content range. We could get the best drying effect by adjust feeding rate, thickness of pavement, drum rotating speed, feeding form etc.

       (3) Short retention time. Drying time only remains 10-15 seconds, it is suitable for heat sensitive material.


  Products Parameters

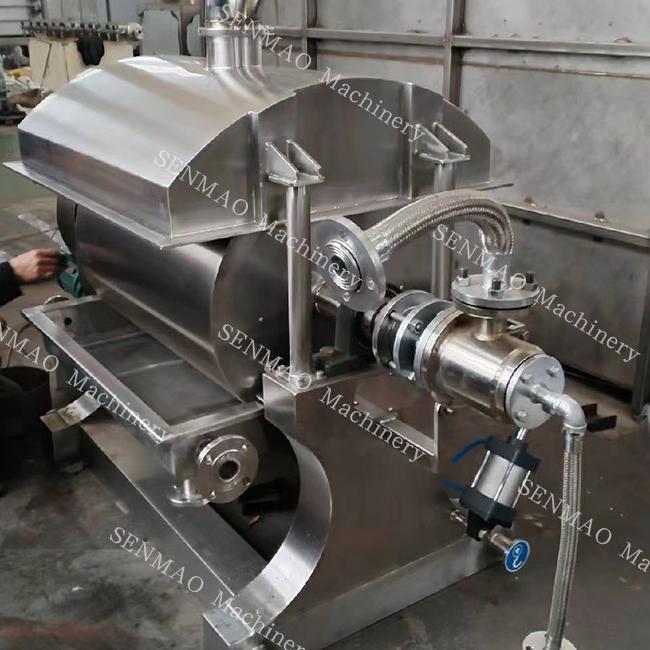

  Details Image
