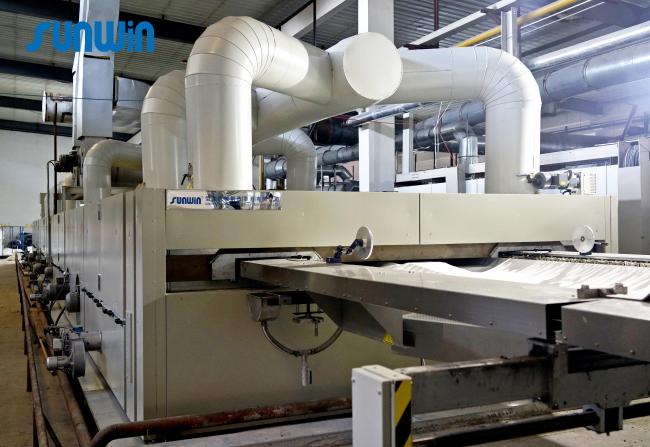

8 Chamber Single Padder Automatic Weft Straightener Machine Stenter Finishing Process
Single padder automatic weft straightener stenter finishing machine
Main Features:
- Motorized width adjustment system
- All width adjustment spindles regulated automatically
- Width adjustment system with individual drives
- Number of chamber: 4-12 chambers
- Individual configuration for woven fabrics
- Individual configuration for knitted fabrics
- Max. working temperature: 230℃
Specification:
| Model | STH-2600-8 |
| Machine width | 2600mm |
| Working width | 2400mm |
| Speed | 5-100m/min |
| Heating system | Thermal Oil/ Steam/ Gas |
| Chambers | 8 chambers |
| Chain | Horizontal Chain |
| Rail | Lubricant type rail |
| Selvedge gumming | Option |
| Selvedge cutting | Option |
| Automatic weft straightener | OPtion |
Application:
Major suitable for open width knitted fabric, woven fabric, warp knitted fleece fabric etc
Machine Flow Process:
Vertical type entry → Centering device → Padder →Automatic weft straightener → Operation Platform → Touch Screen Controller (15'') → Pinning + Overfeeding → Chain → Gumming → Chambers → Air cooling →Cutting device → Cylinder cooling → Plaiter
Warranty:
1 YEAR WARRANTY PERIOD.
