Sany Heavy Industry SR235 S Construction Piling Machine 257 KW Sany Piling Machine

Price Negotiable
Price: Negotiation
MOQ: 1 set
Delivery Time: confer with
Brand: Sany
Product Description

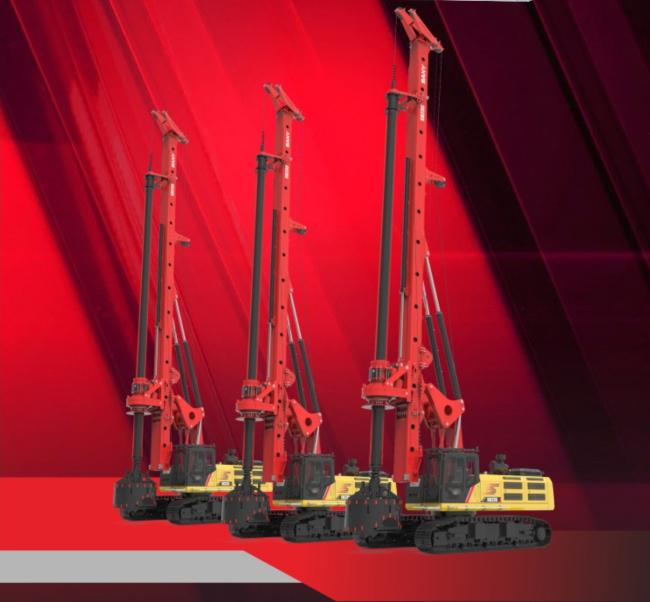

Sany Heavy Industry SR235-S rotary drilling rig

SR235-S rotary drilling rig imports large displacement electric injection engine, equipped with high-power main pump, adopts power optimization control technology, real-time power distribution, fast response speed, high fuel efficiency, comprehensive energy saving of 10%~15%.

Sany SR235-S rotary drilling rig parameter configuration

Sany SR235-S rotary drilling rig technical parameters


drilling
Maximum bore diameter2000mm
Maximum drilling depth (friction rod/lock rod)68/54m
Power engine head
Rated output torque235kN·m
speed5-32rpm
Pressurization system
Add pressure210kN
Pull up force270kN
trip5000mm
Main winding lift
Force of lifting235kN
Diameter of wire rope32mm
Maximum speed70m/min
Secondary roll up
Force of lifting80kN
Diameter of wire rope20mm
Maximum speed70m/min
Angle of mast
Before/after5/90°
Left/right±3°
chassis
Model of engineISUZU 6UZ1
Power of engine257/2000kW/rpm
emissionsCOMⅢ
displacement9.84L
Length of chassis7265mm
Spread width of chassis4500mm
Width of track800mm
Tail radius of rotation4360mm
The host
Height of machine22870mm
Working weight81t
Width of transport3540mm
Height of transport3660mm




Our Services
Why Choose Us?
1. We are a professional and reliable supplier of Construction Piling Machine in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
