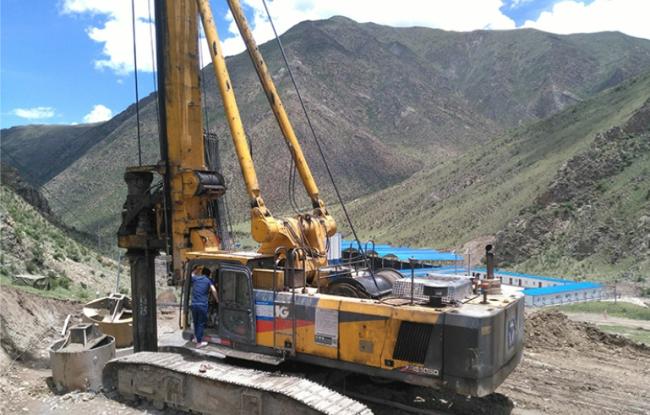

Xrs1050 Big Verticle Hydraulic Piling Machine 390kn.M
XCMG Official Xrs1050 Big Rig Verticle Drill Machine Rotary Drilling Rig Price for Sale
Super stability and convenience of transportation, for use the special hydraulic and telescopic crawling chassis of rotary drilling rig.
The import engine provides strong power, and the noise and emission meet Europe III standard.
The design of big trigonal luffing mechanism bring a significant improvement in stability.
The quality of work is enhanced by increase the mast section to reduce mechanical wobble of the mast.
Ensure verticality of the hole by add a bracket for drill pipe.
High-performance and more energy-efficient, due to the technology of load-sensing hydraulic system.
It can be equipped with a variety of drilling tools to realize drought and wet working.
|
Description
|
Unit
|
Parameter value
|
|
|
Max. drilling diameter
|
mm
|
2500
|
|
|
Max. drilling depth
|
m
|
105
|
|
|
Working condition (L × W × H)
|
mm
|
10265×4800×27520
|
|
|
Transport condition (L × W × H)
|
mm
|
17615×3500×3535
|
|
|
Weight of overall unit (standard configuration, excluding drilling tool)
|
t
|
114
|
|
|
Engine
|
Model
|
|
QSM11-C400
|
|
Rated power/speed
|
kW
|
298
|
|
|
Rotary drive
|
Max. torque
|
kN.m
|
390
|
|
Rotational speed
|
r/min
|
7~18
|
|
|
Pull-Down Cylinder
|
Max. pull- down piston push
|
kN
|
240
|
|
Max. pull- down piston pull
|
kN
|
250
|
|
|
Max. pull- down piston stroke
|
m
|
6
|
|
|
Main Winch
|
Max. pulling force
|
kN
|
400
|
|
Max. line speed
|
m/min
|
60
|
|
|
Auxiliary Winch
|
Max. Pulling force
|
kN
|
100
|
|
Max. line speed
|
m/min
|
65
|
|
|
Undercarrige
|
Max. traveling speed
|
km/h
|
1.2
|
|
Max. grade ability
|
%
|
35
|
|
|
Min. Clearance
|
mm
|
445
|
|
|
Track shoe width
|
mm
|
800
|
|
|
Distance between tracks
|
mm
|
3500~4800
|
|
|
Hydraulic System
|
Working pressure
|
Mpa
|
35
|
