Xr280e Bore Pile Foundation Rotary Drill Rig Crawler Type
Xr280e Bore Pile Foundation Rotary Drill Rig

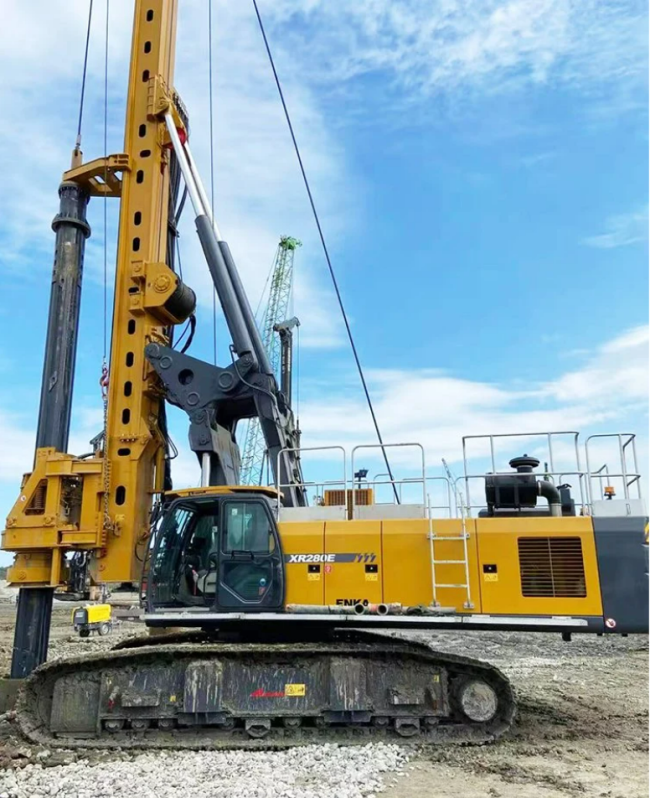

XCMG Factory XR280E Bore Pile Foundation Rotary Drill Rig for Sale
Optimally designed double swing arm luffing mechanism and optimized hinge point position take account of the construction stability and the transportation convenience at the same time.
It adopts H-type hydraulic retractable crawler chassis dedicated for rotary drilling rigs and large-diameter slewing bearing to ensure superior stability and convenient transportation.
The hydraulic system adopts load sensing technology with total power control and limit power control, making the hydraulic system more efficient and energy-saving, independent radiator system provides high heat dissipation efficiency.
The proprietary single-row rope main winch of XCMG effectively solves the twine problem and greatly prolongs the service life of wire rope.
The rotary drive owns normal mode special for soil layers and rock-entering mode special for rock formations, which improves construction efficiency, the autorotation of rotary drive can achieve continuous adjustments of speed in normal mode and rock-entering mode.
|
Type
|
Unit
|
Parameter
|
|
|
Max. drilling diameter
|
m
|
2.5
|
|
|
Max. drilling depth
|
m
|
94
|
|
|
Engine
|
Model
|
/
|
TAD1352VE
|
|
Power
|
kW
|
315
|
|
|
Rotary drive
|
Max. output torque
|
kN.m
|
300
|
|
Rotary speed
|
r/min
|
6-27
|
|
|
Crowd cylinder
|
Max. pull-down piston push
|
kN
|
260
|
|
Max. pull-down piston pull
|
kN
|
330
|
|
|
Max. pull-down piston stroke
|
m
|
6
|
|
|
Crowd winch
|
Max. pull-down piston push
|
kN
|
330
|
|
Max. pull-down piston pull
|
kN
|
330
|
|
|
Max. pull-down piston stroke
|
m
|
13
|
|
|
Main winch
|
Max. pulling force
|
kN
|
330
|
|
Max. speed
|
m/min
|
75
|
|
|
Auxiliary winch
|
Max. pulling force
|
kN
|
100
|
|
Max. speed
|
m/min
|
41
|
|
|
Mast inclination
|
Lateral/ forwards/ backwards
|
°
|
±4/5/15
|
|
Undercarrige
|
Max. traveling speed
|
km/h
|
1.5
|
|
Max. grade ability
|
%
|
35
|
|
|
Min. clearance
|
mm
|
445
|
|
|
Track shoe width
|
mm
|
800
|
|
|
Distance between tracks
|
mm
|
3500-4800
|
|
|
Hydraulic system
|
Working pressure
|
MPa
|
33
|
|
Overall weight
|
Max. traveling speed of the overall unit
|
t
|
106
|
|
Dimension
|
Working condition
|
mm
|
10825*4800*25200
|
|
Transportation condition
|
mm
|
19750*3500*3790
|
|
