ZOOMLINE Construction Piling Machine 122m Used Rotary Drilling Rig
Used ZOOMLINE Zr500l 122m Rotary Drilling Rig
ZOOMLINE Zr500l 122m Rotary Drilling Rig Quick Details
The main winch is located underneath the mast,making it very convenient to observe the walking rope;
The over-loading proof device of the crowding system can protect the Kelly bar effectively and make full use of capacity of the machine to ensure verticality of the borehole;
Zoomlion’s specific-use in-house telescopic-crawler undercarriage is used to achieve superior stability and transport convenience;
The automatic engine power control system jointly controls engine speed,hydraulic system pressure and main pump displacement to protect the engine to the most extent,making the engine more economic,efficient,reliable and keeping the machine in the optimum operating status;
Drilling tools for different purposes with different purposes with different specifications such as long or short augers,generic-use drilling buckets and core barrels,etc.,are equipped to satisfy construction requirements in different geological conditions.
ZOOMLINE Zr500l 122m Rotary Drilling Rig Parameters
| Torque(KN.M) | 500 | |
| Drilling Diameter(mm) | 3000/3500 | |
| Drilling Depth(m) | inter-locking | 101 |
| Friction | 122 | |
| Drilling Speed(r/min) | 5.8～22 | |
| Engine Model | QSX15-C600 | |
| Rated Power(kw) | 447 | |
| Max.Crowd Force(kN) | 480 | |
| Max.Crowd Cylinder Pull(kN) | 480 | |
| Line Pull(main winch)(kN) | 600 | |
| Line Speed(main winch)(m/min) | 55 | |
| Line Pull(aux.winch)(kN) | 112 | |
| Line Speed(aux.winch)(m/min) | 60 | |
| Operating Mass(t) | 185 | |
| Traction Force(kN) | 918 | |
| Rope diameter(Main winch)(mm) | 46 | |
| Rope diameter(auxiliary winch)(mm) | 22 | |

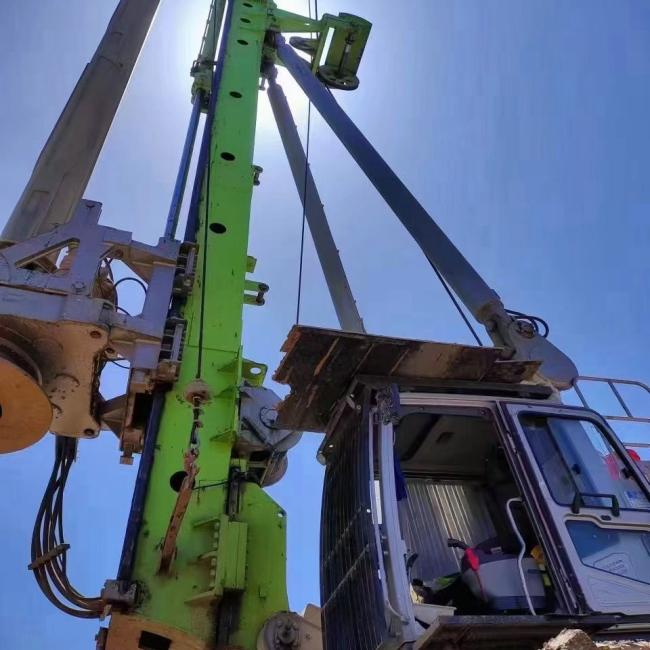

ZOOMLINE Zr500l 122m Rotary Drilling Rig Pictures
