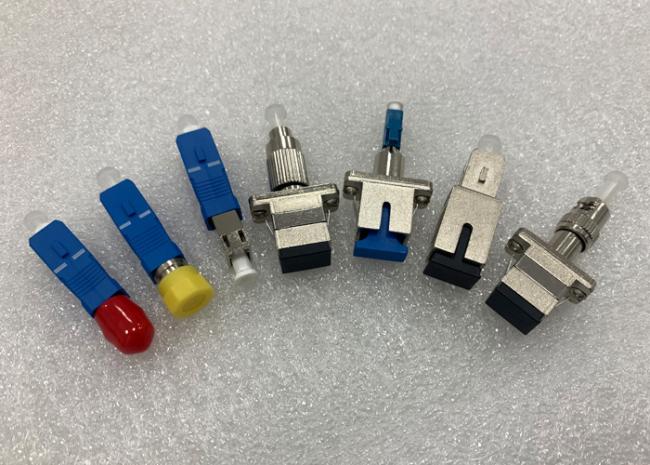

FC To ST Hybrid Conversion Fiber Optic Adapter With Metal Housing
FC To ST Hybrid Conversion Fiber Optic Adapter With Metal Housing
FC To ST Male To Female Hybrid Conversion Fiber Optic Adapter With Metal Housing
Female to male fiber optic adapter is a fixed pre-embedded optical fiber adapter, which is suitable for connection and coupling between optical fiber connectors and fiber optic patch cords. It is an auxiliary tool for optical fiber test. It is suitable for emergency repair and temporary connection of optical fiber.
Main Features of FC to ST Hybrid Fiber Optic Adapter:
1, High precision and good compatibility;
2, High reliability and stability;
3, Reusable up to 1000 times;
4, Convenient and intuitive operation can be observed by the naked eye;
5, Compatible with both single and multi-mode fiber;
6, With low loss and good reflection suppression.
Environmental and Mechanical Performance:
| Operating Temperature Range | -40 to +75º C |
| Storage Temperature Range | -40 to +85º C |
| Temperature Cycling | -40 to +75º C, 40 cycles=0.2dB change |
| High temperature | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair | 10-55Hz, 1.5mm P to P <0.2dB change |
| Durability | 500 mating, clean every 25 mating, change<0.2dB |
Available Type of Begate Fiber Optic Adapters:
Male to Female (same connector at both ends)
Female to Female (different connector at two ends)
Connector type: SC-SC, LC-LC, ST-ST, FC-FC, MU-MU, SC-LC, SC-FC, SC-ST, LC-FC, LC-ST, ST-FC
Insertion Loss: ≤ 0.50dB
Durability: < 0.20dB (>1000 times)
Temperature Range: -25ºC~+75ºC
Color Options: Blue, Beige, Green, Metal
Material Options: plastic or metal
Sleeve Material:
Zirconia ceramic for both SM and MM
Phosphor bronze for MM
Fiber Channel: Simplex
Polishing type: PC, UPC or APC
Flange Options: with flange or without flange (flange-less)
Dust cap: Plastic cover
