3000A High Current Servo Custom Slip Ring Hole 25mm

3000A High Current Slip Ring Customized Slip Ring With Hole Size 25mm

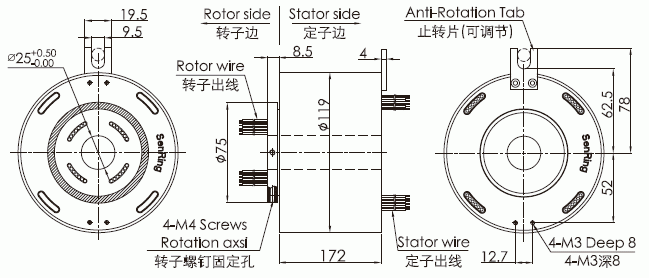

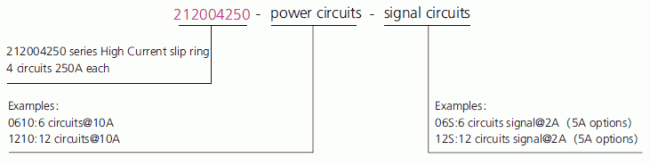

Description of 212004250 Custom Slip Ring

SENRING 212004250 series High Current slip ring, hole size 25mm,OD 119mm,sipport 4 circuits (250A each) high current.If you need to combine other circuit/signal channel no.,customization available based on the standard model.

Features of 212004250 Custom Slip Ring

1. High current, maximum current can reach 3000A per channel;

2. Aluminum or stainless steel housing;

3. Has the advantages of small contact resistance, low heat and long - term stable operation;

4. Integrated structure design,easy installation.

Advantage:

1. Affordable price

2. Quality guaranteed

3. Response within 24 hours

4. Prompt delivery

5. Reliable package & shipment

6. Flexible & quick customization

Option:

1. Work temperature.
2. Housing materials.
3. Work speed.
4. Installation method.
5. Position of wire outlet.
6. Lead wire length.
7. Protection degree.
8. Circuits, Current and voltage.
9. Power, signal and data combination.
