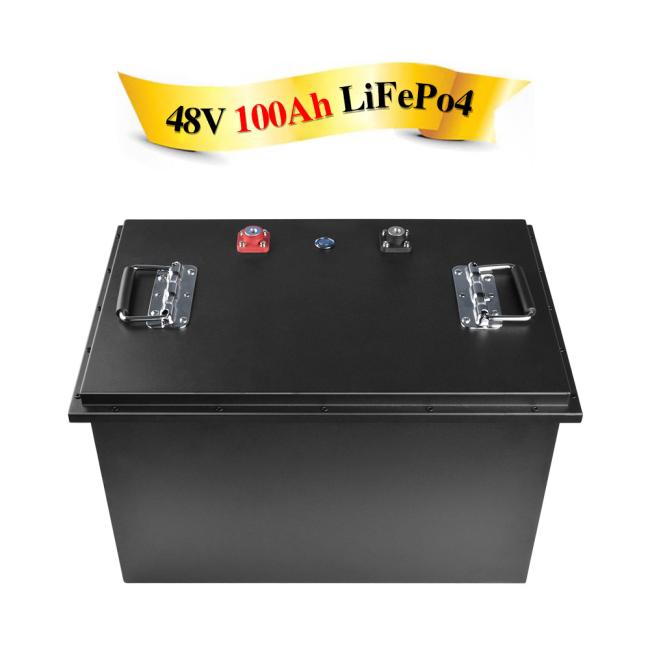

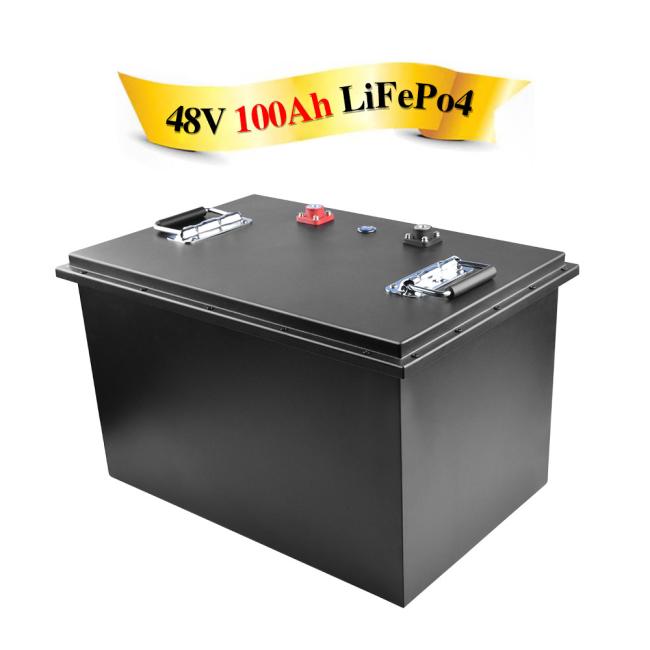

China Lithium Ion Battery Pack Waterproof Prismatic Cell Lifepo4 16s 48v Bms 100ah for sale

Lithium Ion Battery Pack Waterproof Prismatic Cell Lifepo4 16s 48v Bms 100ah

Price Negotiable

Price: 900-1200 USD/PCS

MOQ: 1PCS

Delivery Time: 7-15 work days

Brand: YABO

Product Description

Lithium Ion Battery Pack Waterproof Prismatic Cell Lifepo4 16s 48v Bms 100ah

Place of Origin:: Guangdong, China

Brand Name:: YABO

Model Number:: 48V 100Ah-Waterproof case

Product Name:: 48V 100Ah waterproof Lithium Iron Phosphate (LiFePO4) Battery

Cycle Life:: 2000+ Times

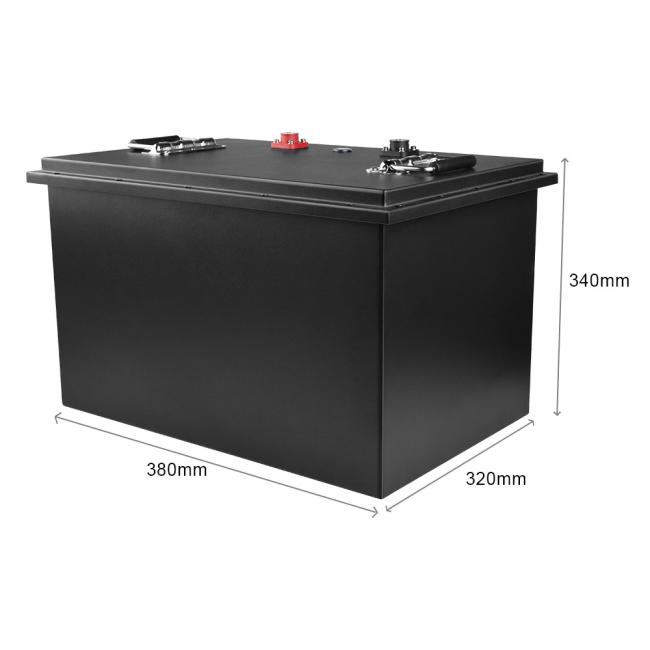

Dimension:: 380*320*340mm

MOQ:: 1 Pc

Samples Time:: 3 days

Cell & Format:: 3.2v 100ah (16S1P)

Casing:: Metal

Water Dust Resistance:: IP67

OEM/ODM:: Warmly Welcomed

Warranty:: 3years

Application:: BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Solar Energy Storage Systems, UPS, Wind Power System,Electric Vehicle , E-bike, E-rickshaw etc,Lighting

Battery Cell:: 3.2v 100Ah

Certification:: CE, ROHS, FCC, IEC, UN38.3, MSDS

Weight:

The charging current:: 100A

The discharge current:: 100A

Product Description

Electrical Characteristics	Nominal Voltage	51.2V
	Nominal Capacity	100Ah@0.2C
	Energy	5120 Wh
	Internal Resistance	≤35mΩ
	Cycle Life	2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	58.4±0.2V
	Charging Mode	At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
	Charging Current	100A
	Max.Charging Current	100A
Standard Discharging	Discharging Current	100A
	Max. Continuous Current	100A
	Max.Pulse Current	110A(<10S)
	Discharging Cut-off Voltage	40. V
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP67
Structure	Cell & Format	3.2V 100 Ah cells
	Casing	Waterproof Metal case
	Dimension(LWH*TH)	380320340mm
	Package Dimension
	Weight
	Display panel

Details Images

Test Chart

Product Advantage

◆ Using lithium iron phosphate cell, superior safety,thousands of cycles.◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ No need of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charger (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.

Application

◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting

Why Choose Us

Product Packaging

FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. production and confirm the design firstly based on our sample.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?

A:3 year warranty.
